Mã sản phẩm:

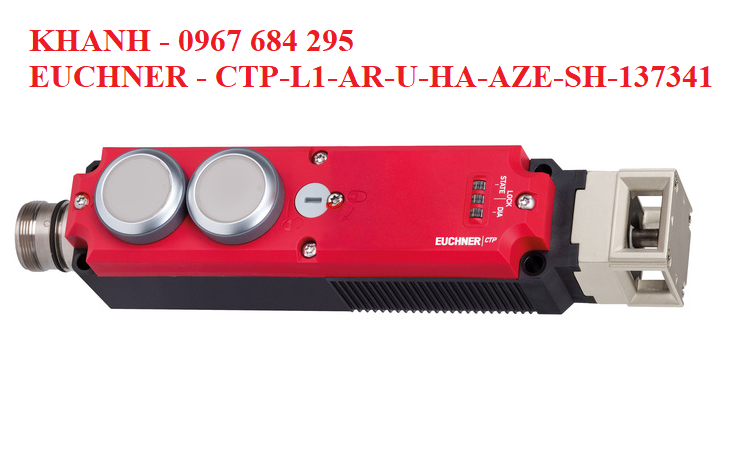

Each actuator is unique. The switch detects only taught-in actuators. Additional actuators can be taught in. Only the last actuator taught in is detected.
| CTP‑L1 | Guard locking actuated by spring force applied and power-ON released (closed-circuit current principle) |

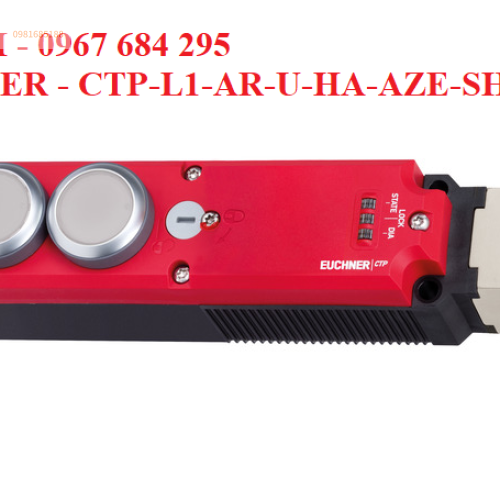

The color of the pushbutton can be selected using the lens set included (5 colors). Item no.: 120344 (see Accessories)
|
Plug connector (view of connection side) |
Pin |
Designation |
Function |
Conductor coloring of connection cable |
|---|---|---|---|---|
 |
1 |
IMP |
Operating voltage of guard locking solenoid, 24 V DC |
VT |
|
2 |
FI1A |
Enable input for channel 1 |
RD |
|
|
3 |
FI1B |
Enable input for channel 2 |
GY |
|
|
4 |
FO1A |
Safety output, channel 1 |
RD/BU |
|
|
5 |
FO1B |
Safety output, channel 2 |
GN |
|
|
6 |
UB |
Operating voltage AR electronics, controls and indicators 24 V DC |
BU |
|
|
7 |
RST |
Reset input |
GY/PK |
|
|
8 |
OD |
Door monitoring output |
GN/WH |
|
|
9 |
OI |
Diagnostics output |
YE/WH |
|
|
10 |
OL |
Guard locking monitoring output |
GY/WH |
|
|
11 |
- |
Not used |
BK |
|
|
12 |
FE |
Function earth (must be connected to meet the EMC requirements) |
GN/YE |
|
|
13 |
IMM |
Operating voltage of guard locking solenoid, 0 V |
PK |
|
|
14 |
- |
Not used |
BN/GY |
|
|
15 |
S2 |
Pushbutton 2 (illuminated) |
BN/YE |
|
|
16 |
H2 |
LED 2 |
BN/GN |
|
|
17 |
S3 |
Pushbutton 3 (illuminated) |
WH |
|
|
18 |
H3 |
LED 3 |
Giá:
Liên hệ
Lượt xem: 6527
