Mã sản phẩm:
Each actuator is unique. The switch detects only taught-in actuators. Additional actuators can be taught in. Only the last actuator taught in is detected.

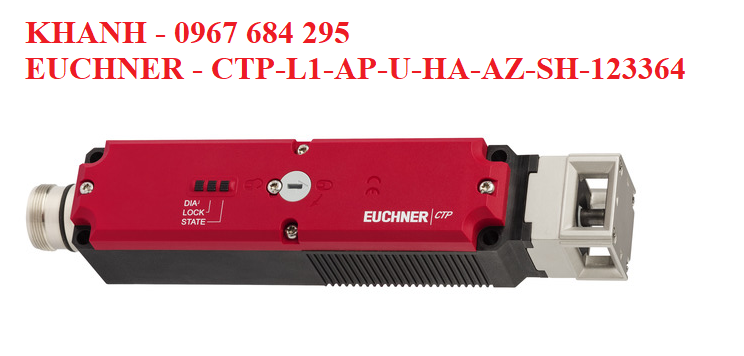

| CTP‑L1 | Guard locking actuated by spring force applied and power-ON released (closed-circuit current principle) |
|
Plug connector (view of connection side) |
Pin |
Designation |
Function |
Conductor coloring of connection cable |
|---|---|---|---|---|
 |
1 |
IMP |
Operating voltage of guard locking solenoid, 24 V DC |
VT |
|
2 |
- |
n.c. |
RD |
|
|
3 |
- |
n.c. |
GY |
|
|
4 |
FO1A |
Safety output, channel 1 |
RD/BU |
|
|
5 |
FO1B |
Safety output, channel 2 |
GN |
|
|
6 |
UB |
Operating voltage of AP electronics, 24 V DC |
BU |
|
|
7 |
RST |
Reset input |
GY/PK |
|
|
8 |
OD |
Door monitoring output |
GN/WH |
|
|
9 |
OI |
Diagnostics output |
YE/WH |
|
|
10 |
OL |
Guard locking monitoring output |
GY/WH |
|
|
11 |
- |
n.c. |
BK |
|
|
12 |
FE |
Function earth (must be connected to meet the EMC requirements) |
GN/YE |
|
|
13 |
- |
n.c. |
PK |
|
|
14 |
- |
n.c. |
BN/GY |
|
|
15 |
- |
n.c. |
BN/YE |
|
|
16 |
- |
n.c. |
BN/GN |
|
|
17 |
- |
n.c. |
WH |
|
|
18 |
IMM |
Operating voltage of guard locking solenoid 0 V |
YE |
|
|
19 |
0 V UB |
Giá:
