Specifically designed to allow direct immersion assembly of the complete variety of mineral insulation thermoelements.
-Re-designed nose cones to ensure a better sealing and vibration resistance.
TECHNICAL DATA

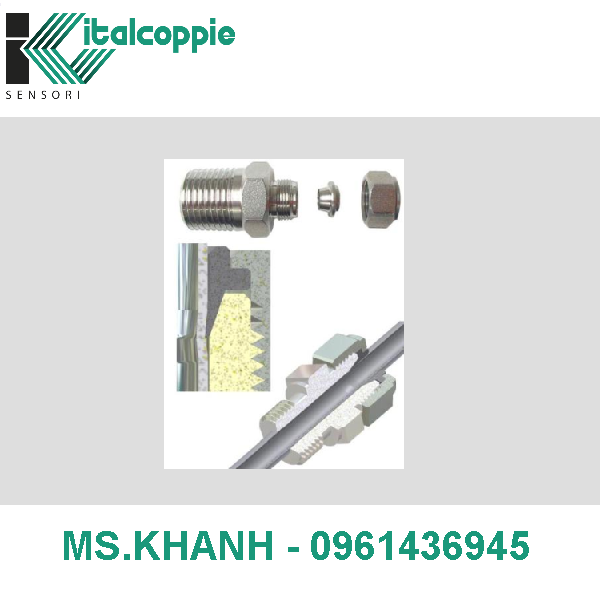

sliding compression fittings
threaded 1/8" GAS CIL. acc. UNI-ISO 228
threaded 1/8" NPT acc. ANSI B 1.20.1
threaded 1/4" CYL. GAS acc. UNI-ISO 228
threaded 1/4" NPT acc. ANSI B 1.20.1
threaded 3/8" CYL. GAS acc. UNI-ISO 228
threaded 3/8" NPT acc. ANSI B 1.20.1
threaded 1/2" CYL. GAS acc. UNI-ISO 228
threaded 1/2" NPT acc. ANSI B 1.20.1
stainless steel ferrule PN MAX 100 BAR; 3/4 turn tightening
