Mã sản phẩm:

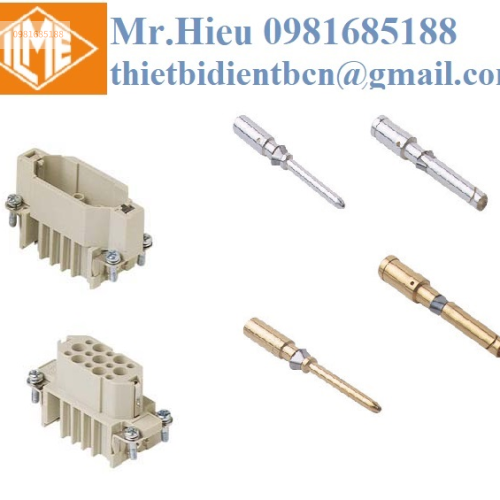

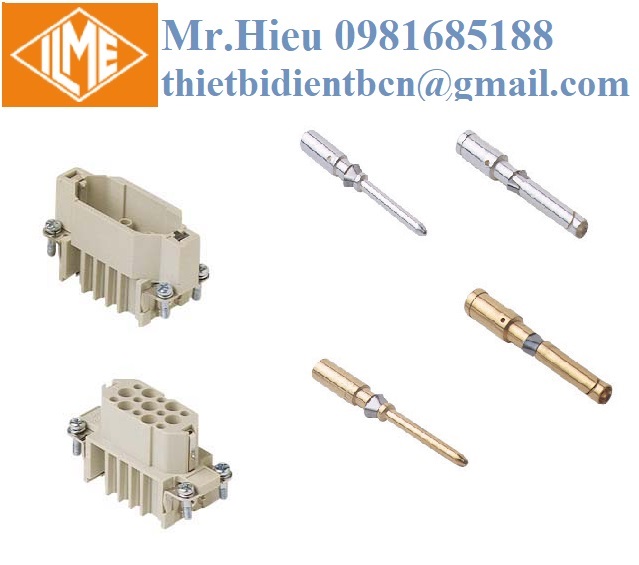

TECHNICAL DETAILS
| Product description | |
| Model | Female/male insert |
| Version | Crimp connections |
| Series | CD |
| Product type | For Female/male contacts 10A |
| Family | CLASS inserts |
| Size | Size "49.16" |
| N. of poles | 15 poles +  |
| Technical data | |
| Current | 10 A |
| Voltage | 250 V |
| Rated impulse withstand voltage | 4 kV |
| Pollution degree | 3 |
| Operating temperature range (min, max) | -40 °C ... +125 °C |
| Mating cycles | ≥ 500 |
| IP degree of protection | IP20 without enclosure, IP65/IP66 with enclosure |
| PE connection type | Screw |
| PE terminal stripping length | 7 mm |
| PE wire cross-section | 0,14-2,5 mm2; AWG 26-14 |
| Tightening torque for PE connection | M3,5: 0,8 Nm; 7,1 lb.in (Ph1 or 0,8 x 5,5 mm) |
| Further technical details | |
| Characteristics according to EN 61984 | 10A 250V 4kV 3; 10A 230/400V 4kV 2 |
| Insulation resistance | ≥ 10 GΩ |
| Contact resistance | ≤ 3 mΩ |
| Rated voltage according to UL/CSA | 600 V |
| UL 94 flammability rating | V-0 |
| Conductors stripping length | 6 - 8 mm |
| Tightening torque for fixing screws | M3: 0.5 Nm; 4.4 lb.in (Ph1 or 0.8x4 mm) |
| Weight | 29,50 g |
| Approvals / Standards | |
| Reference standard | EN 61984:2009-06 |
| Quality mark |   DNV-GL, EAC |
| Conformity | CQC, CE |
