Mã sản phẩm:

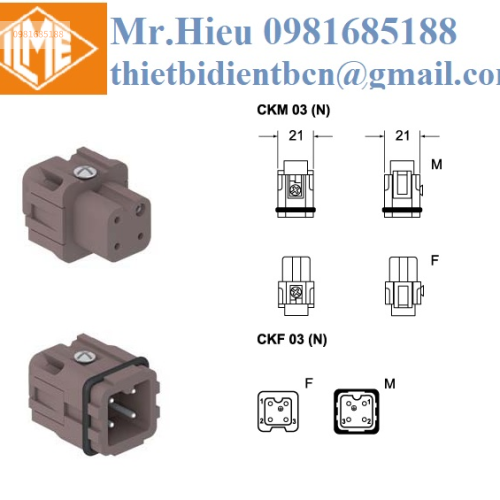

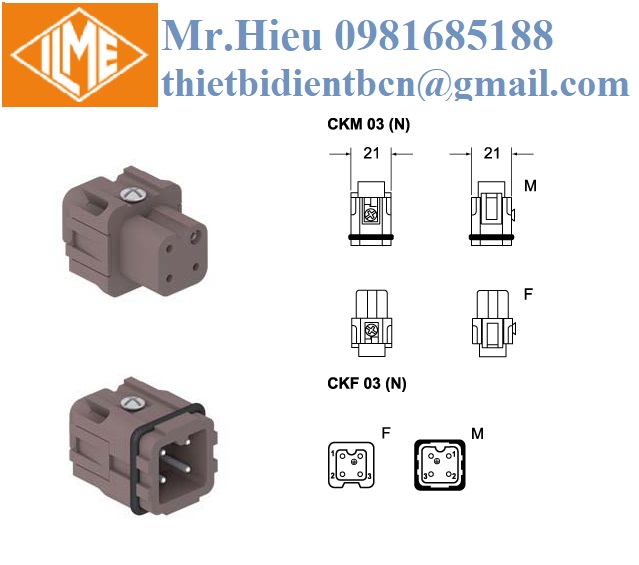

TECHNICAL DETAILS
| Product description | |
| Model | Female/male insert |
| Version | Screw terminal connections |
| Series | CK |
| Product type | With female/male contacts |
| Style | For applications up to 180° C |
| Family | CLASS inserts |
| Size | Size "21.21" 180°C |
| N. of poles | 3 poles +  |
| Technical data | |
| Current | 10 A |
| Voltage | 230 - 400 V |
| Rated impulse withstand voltage | 4 kV |
| Pollution degree | 3 |
| Wire cross-section | 0,75 mm² - 2,50 mm² |
| AWG size | 18 - 14 |
| Operating temperature range (min, max) | -40°C … +180°C |
| Contact material | Silver plated |
| Mating cycles | ≥ 500 |
| IP degree of protection | IP20 without enclosure, IP44 with enclosure |
| Tightening torque for PE connection | M3: 0,5 Nm; 4,4 lb.in (0,5 x 3 mm) |
| Further technical details | |
| Characteristics according to EN 61984 | 10A 230/400V 4kV 3; 10A 400/690V 4kV 2 |
| Insulation resistance | ≥ 10 GΩ |
| Contact resistance | ≤ 2 mΩ |
| Rated voltage according to UL/CSA | 600 V |
| UL 94 flammability rating | V-0 |
| Conductors stripping length | 6 mm |
| Torque for main contact | M3: 0,5 Nm; 4,4 lb.in (0,5 x 3 mm) |
| Tightening torque for fixing screws | M3: 0,5 Nm; 4,4 lb.in (Ph1 or 0,8 x 5,5 mm) |
| Weight | 15,00 g |
| Approvals / Standards | |
| Reference standard | EN 61984:2009-06 |
| Quality mark |   DNV GL, BV, EAC |
| Conformity | CQC, CE |
