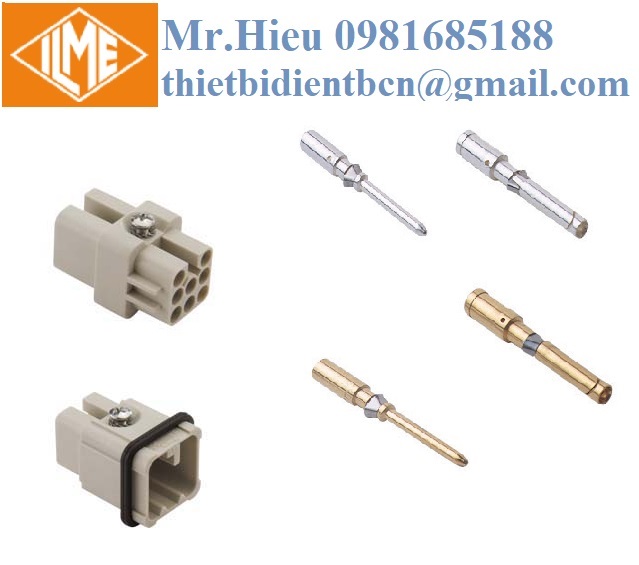

TECHNICAL DETAILS
| Product description | |
| Model | Female/Male insert |
| Version | Crimp connections |
| Series | CD |
| Product type | For Female/Male contacts 10A |
| Family | CLASS inserts |
| Size | Size "21.21" |
| N. of poles | 8 poles |
| Technical data | |
| Current | 10 A |
| Voltage | 50 V |
| Rated impulse withstand voltage | 0,8 kV |
| Pollution degree | 3 |
| Operating temperature range (min, max) | -40 °C ... +125 °C |
| Mating cycles | ≥ 500 |
| IP degree of protection | IP20 without enclosure, IP44/IP66/IP67/IP68/IP69 with enclosure |
| PE terminal stripping length | 7 mm |
| PE wire cross-section | 0,14-2,5 mm2; AWG 26-14 |
| Further technical details | |
| Characteristics according to EN 61984 | 10A 50V ac / 120 dc 0,8kV 3 |
| Insulation resistance | ≥ 10 GΩ |
| Contact resistance | ≤ 3 mΩ |
| Rated voltage according to UL/CSA | 50 V AC/120 V DC |
| UL 94 flammability rating | V-0 |
| Conductors stripping length | 8 mm (6 mm for 2,5 mm²) |
| Tightening torque for fixing screws | M3: 0,5 Nm; 4,4 lb.in (Ph1 or 0,8 x 5,5 mm) |
| Weight | 8,00 g |
| Approvals / Standards | |
| Reference standard | EN 61984:2009-06 |
| Quality mark |   , DNV GL |
| Conformity | Not applicable |
