Mã sản phẩm:

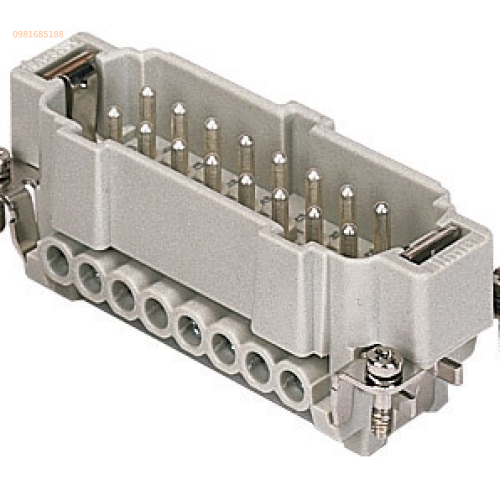

Ruột giắc cắm 16 chân CNEM 16 T
Số chân: 16 chân
Dòng : 16A
Hãng sản xuất: ILME
Xuất xứ: Italy
Bảo hành: 12 tháng
Giá:
Lượt xem:
| Product description | |
| Product type | Insert |
| Series | CNE |
| Connection type | Screw terminal connection |
| Gender | Male |
| N. of poles | 16 poles +  |
| Size | Size "77.27" |
| Specification | With plate |
| Technical data | |
| Current | 16 A |
| Voltage | 500 V |
| Rated impulse withstand voltage | 6 kV |
| Pollution degree | 3 |
| Rated voltage according to UL/CSA | 600 V |
| Wire cross-section | 0,50 mm² - 4,00 mm² |
| AWG size | 20 - 12 |
| Contact type | Turned silver plated |
| IP degree of protection | IP20 without enclosure, IP65/IP66/IP68/IP69 with enclosure |
| Further technical details | |
| Characteristics according to EN 61984 | 16A 500V 6kV 3; 16A 400/690V 6kV 2 |
| Mating cycles | ≥ 500 |
| Insulation resistance | ≥ 10 GΩ |
| Contact resistance | ≤ 1 mΩ |
| Weight | 82,00 g |
| Operating temperature range (min, max) | -40 °C ... +125 °C |
| Conductors stripping length | 7 mm |
| UL 94 flammability rating | V-0 |
| Torque for main contact | M3: 0,5 Nm; 4,4 lb.in (Ph0 or 0,8 x 4 mm) |
| Material properties | |
| Main material | Polycarbonate (PC) |
| Other materials | Contacts: copper alloy |
| Colour | RAL 7032 grey |
| RoHs conformity | Compliant with exemption 6(c): copper alloy containing up to 4% lead by weight |
| China RoHs - EFUP | 50 |
| REACH SVHC substances | Yes Lead |
