RTR-505-P
RTR-505-P

RTR-505-P

  • Mã sản phẩm:

    SEDATA087

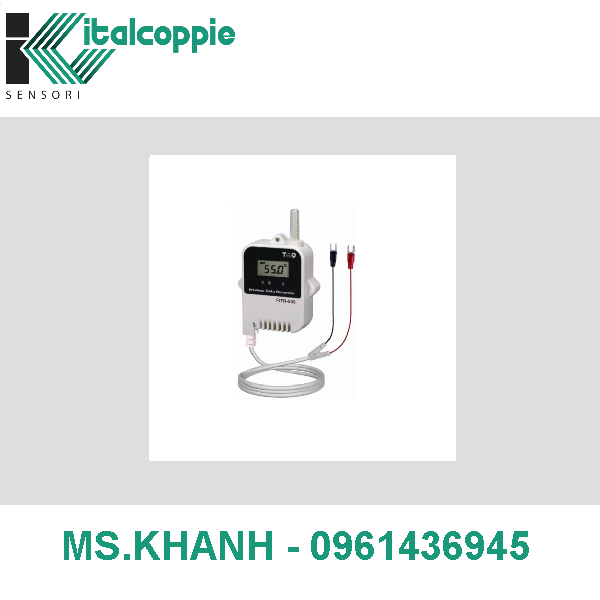

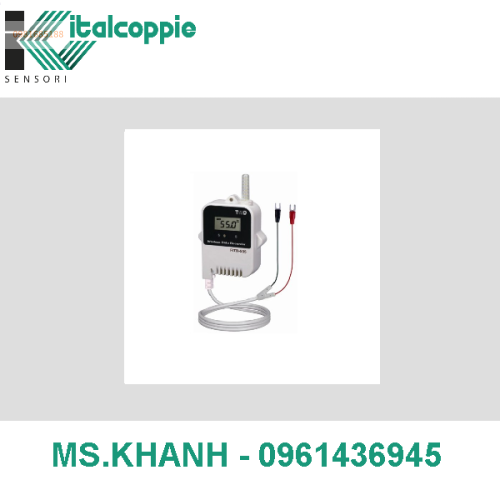

    • Datalogger with wireless communication and external module for digital signals.

    Datalogger equipped with input module for digital signals that allows to calculate and record the number of pulses coming from contact signals (switches, relays, thermostats, ecc..) and from voltage signals Lo/Hi occurring during setted recording time.
    Battery (standard 3,6V) can be simply substituted by user.

    TECHNICAL DATA



    Product type

    Data logger

    Parameter measured

    impulsi

    Unit of measure

    P

    Measurement channel

    1 ch

    external

    Measurement range

    segnale di tensione: da 0 a 22 V (max. 27 V)

    basso [Lo]: 0,5 V o meno

    alto [Hi]: 2,5 V o più

    Risposta degli impulsi

    massimo 3500 impulsi per secondo

    Input impedance

    about 100 K? pull up

    Filtro di ingresso

    ON: 15 Hz o meno

    OFF: 3,5 KHz o meno

    Memory capacity

    16.000 letture (può contare più di 61439 impulsi)

    Registration interval

    it is possible to choose between 15 intervals:

    1, 2, 5, 10, 15, 20, 30 seconds

    1, 2, 5, 10, 15, 20, 30, 60 minuts

    Registration modality

    Endless ( Overwrite oldest data when capacity is full )

    One Time ( Stop recording when capacity is full )

    Display indication

    current reading

    registration state

    battery state warning

    unit of measure

    Power supply

    batteria al litio LS14250

    alimentazione esterna (kit adattatore RTR-500A2, venduto separatamente)


    Giá:

    Liên hệ
