RTR-505-MAL
RTR-505-MAL

RTR-505-MAL

  • Mã sản phẩm:

    SEDATA086

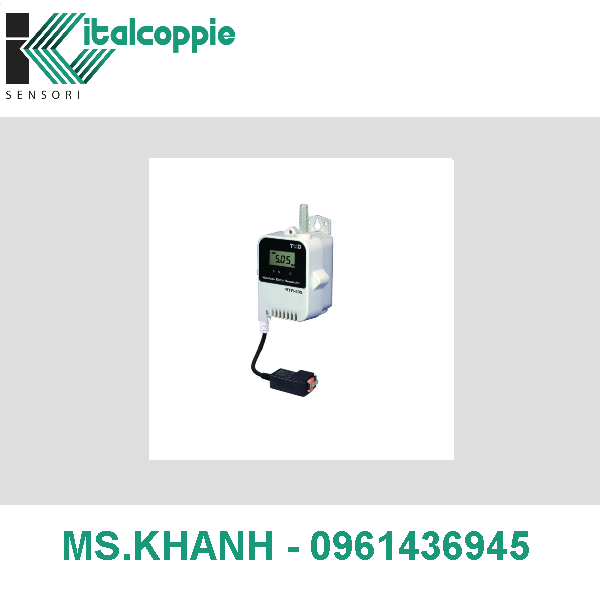

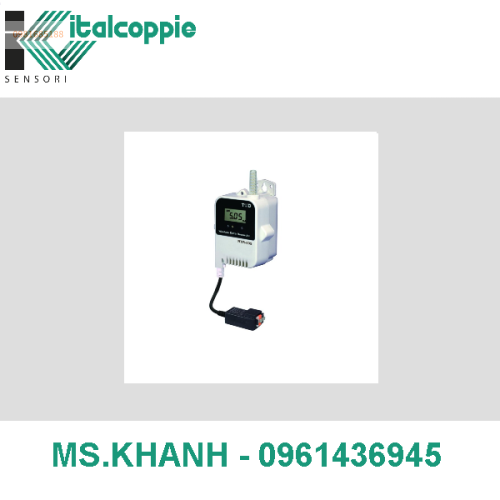

    • Datalogger with wireless communication, external module for output in 4÷20mA and high capacity Batteries

    Datalogger equipped with input module for signals 4÷20 mA and HIGH CAPACITY BATTERIES, planned to measure and record current signals through different types of sensors or measurement devices. It’s possible to choose between instant value recording or average value.
    Battery can be simply subtituted by user.

    TECHNICAL DATA



    Product type

    Data logger

    Parameter measured

    corrente

    Unit of measure

    mA

    Measurement channel

    1 ch

    external

    Measurement range
    0 ÷20 mA (operativo fino a 40 mA)
    Accuracy

    ±0,05 mA + 0,3 % della lettura (da 10°C a 40°C)

    ±0,1 mA + 0,3 % della lettura (da -40°C a 10°C e da 40°C a 80°C)

    Resolution

    0,01 mA

    Memory capacity

    16.000 letture

    Registration interval

    it is possible to choose between 15 intervals:

    1, 2, 5, 10, 15, 20, 30 seconds

    1, 2, 5, 10, 15, 20, 30, 60 minuts

    Registration modality

    Endless ( Overwrite oldest data when capacity is full )

    One Time ( Stop recording when capacity is full )

    Display indication

    current reading

    registration state

    battery state warning

    unit of measure

    Power supply

    batteria al litio LS26500

    alimentazione esterna (kit adattatore RTR-500A2, venduto separatamente)

    Battery life

    circa 4 anni

    Battery life varies depending upon multiple factors including ambient temperature, recording interval, frequency of communication, and battery performance. All estimates are based on operations carried out with a new battery and are in no way a guarantee of actual battery life.

    Communication interface


    Giá:

    Liên hệ
