NEEDLE PROBE FOR BLAST CHILLERS
NEEDLE PROBE FOR BLAST CHILLERS
NEEDLE PROBE FOR BLAST CHILLERS

NEEDLE PROBE FOR BLAST CHILLERS

  • Mã sản phẩm:

    TRA

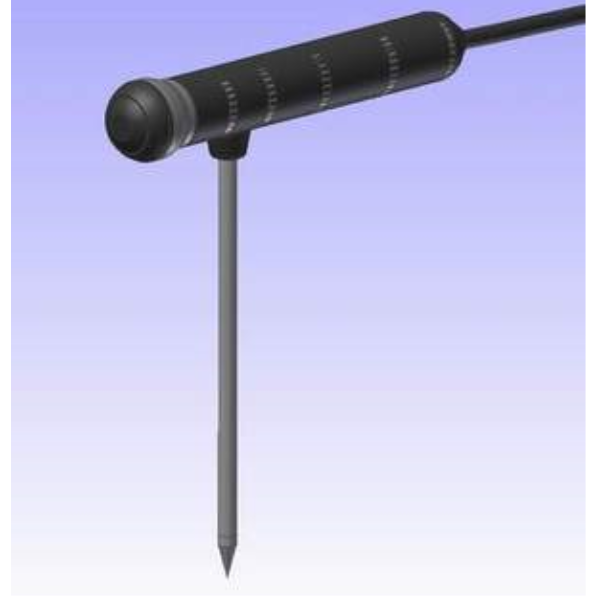

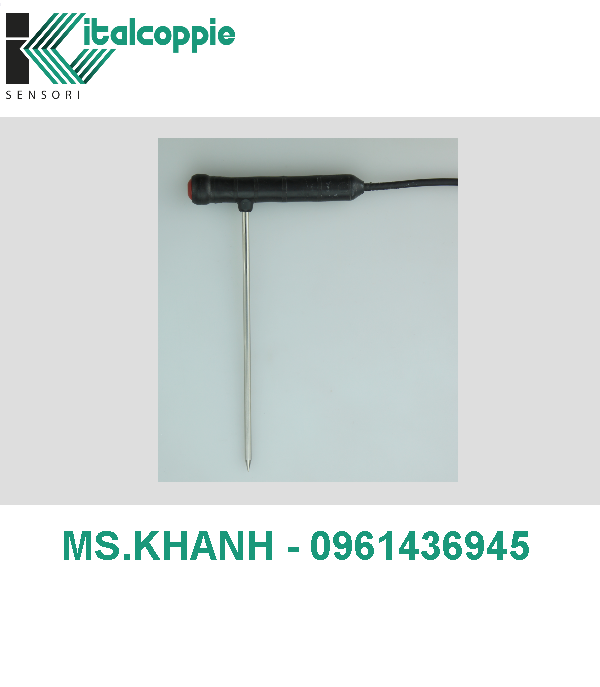

    • Product core measurement probe for refrigeration processes

    – TPE handle
    – graduated stem AISI 316 with needle tip
    – IP67 protection degree
    – available with single or multiple measurement point

    TECHNICAL DATA



    Product type

    probe

    Type of sensor

    thermoresistance

    Sensor construction type

    direct cable

    Sensor protection

    metal sheath

    Removable insert

    no

    Sensing element

    NTC R(25°C)=10Kohm ±1%, beta(25/85)=3977

    NTC R(25°C)=10Kohm ±1%, beta(25/85)=3435

    KTY R(25°C)=980÷1000 Ohm

    Pt100 ? @ 0°C

    Pt1000 ? @ 0°C

    Accuracy class in accordance to IEC751 (*)
    (*) Pt 100 cl.A only available with 3 or 4 wires, cl.AA 4 wires only; Pt 1000 cl. A available with 2 wires only for cable lengths below 1 m, for longer cables only available with 3 or 4 wires, cl. AA 3 wires for cable lengths below 1 m, for longer cables only 4 wires.
    cl. A

    cl. B

    Thermistor (not classifiable in accordance with IEC 751)

    Sensing element operating temperature range
    -50 ÷100°C
    Sheet diameter d=

    Ø 3 mm

    Ø 4 mm

    Ø 5

    Sheet material

    AISI 316

    Insulation resistance
    100 M ?@ 100 Vdc.
    Stem length L=

    100 mm

    150 mm

    200 mm

    170 mm

    500 mm

    600 mm

    Sensing part connection

    cable
