MCR-4TC
MCR-4TC

MCR-4TC

  • Mã sản phẩm:

    SEDATA117

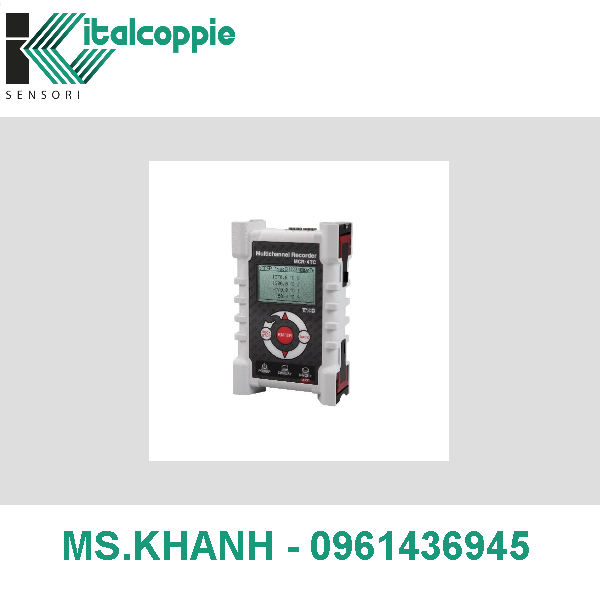

    • Data Logger with 4 measurement channels for thermocouple (K,J,T,S,R) and LCD display

    Data Logger with 4 measurement channels for thermocouple K, J, T, S and R.
    Up to 4 units can be connected to measure and record up to 16 channels of temperature ranging from -270 to 1760°C
    Data storage on SD card (not included).
    Sensors not included.

    TECHNICAL DATA



    Product type

    Data logger

    Parameter measured

    temperature

    Unit of measure

    °C

    °F

    Measurement channel

    4 sensors,

    external

    Type of sensor

    Thermocouple K

    Thermocouple J

    Thermocouple T

    Thermocouple S

    Thermocouple R

    Operating temperature
    -270 ÷1760°C
    Measurement range

    K: -270 ÷ 1370 °C

    J: -210 ÷ 1200 °C

    T: -270 ÷ 400 °C

    S: -50 ÷ 1760 °C

    R: -50 ÷ 1760 °C

    Input impedance

    about 1 M?

    Accuracy

    cold junction compensation

    when input module temperature is between 10 and 40°C: ± 0.5°C

    ±0,8 °C (for other temperature)

    Auto: Depending on the range in use

    thermocouple measure:

    ± 1,5°C + 0,3% of read until to -100°C or over (Type S and R)

    ± 1,5°C + 0,3% of read until to -100°C or over (Type S and R)

    Note:

    Probe error is not incluse

    MCR-4TC has superior noise filter, but the measurement may sometimes fluctuate due to strong noise. Especially when the recording interval is set to 200 ms or less, the filtering becomes weaker and hence the fluctuation may become greater.

    Resolution

    0,1 °C

    Input terminal


  • Giá:

    Liên hệ

  • Lượt xem:

    3573
