Mã sản phẩm:

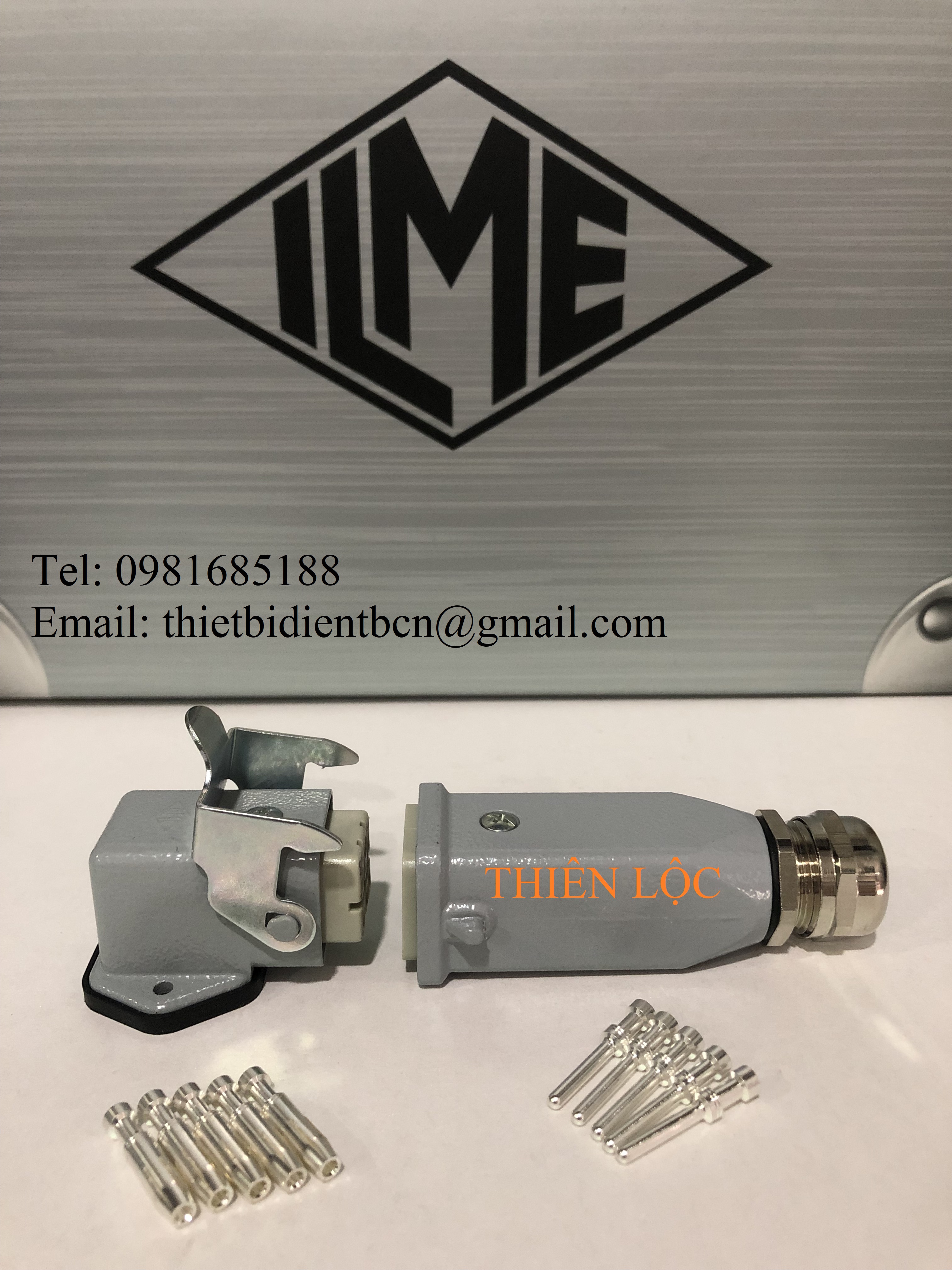

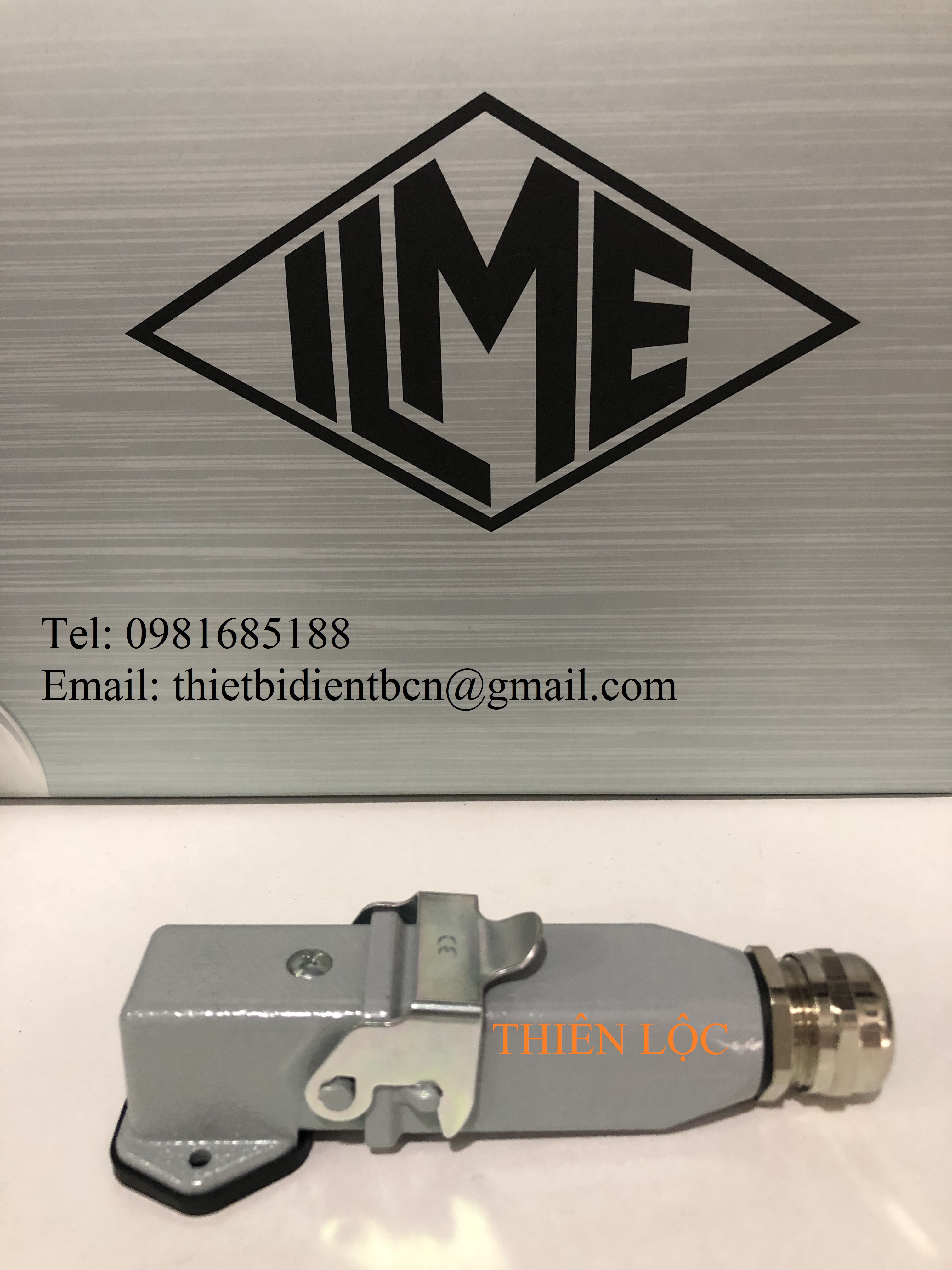

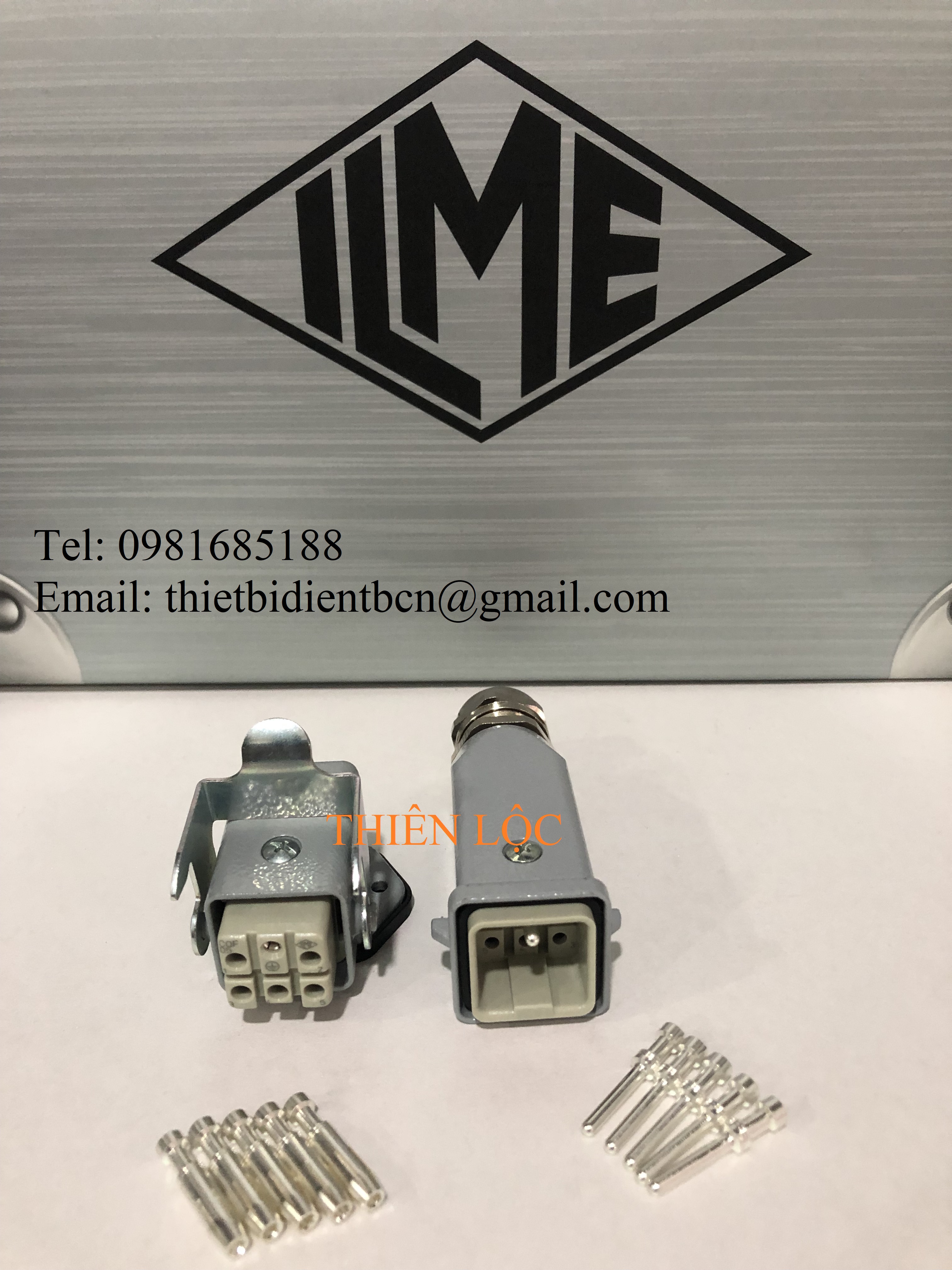

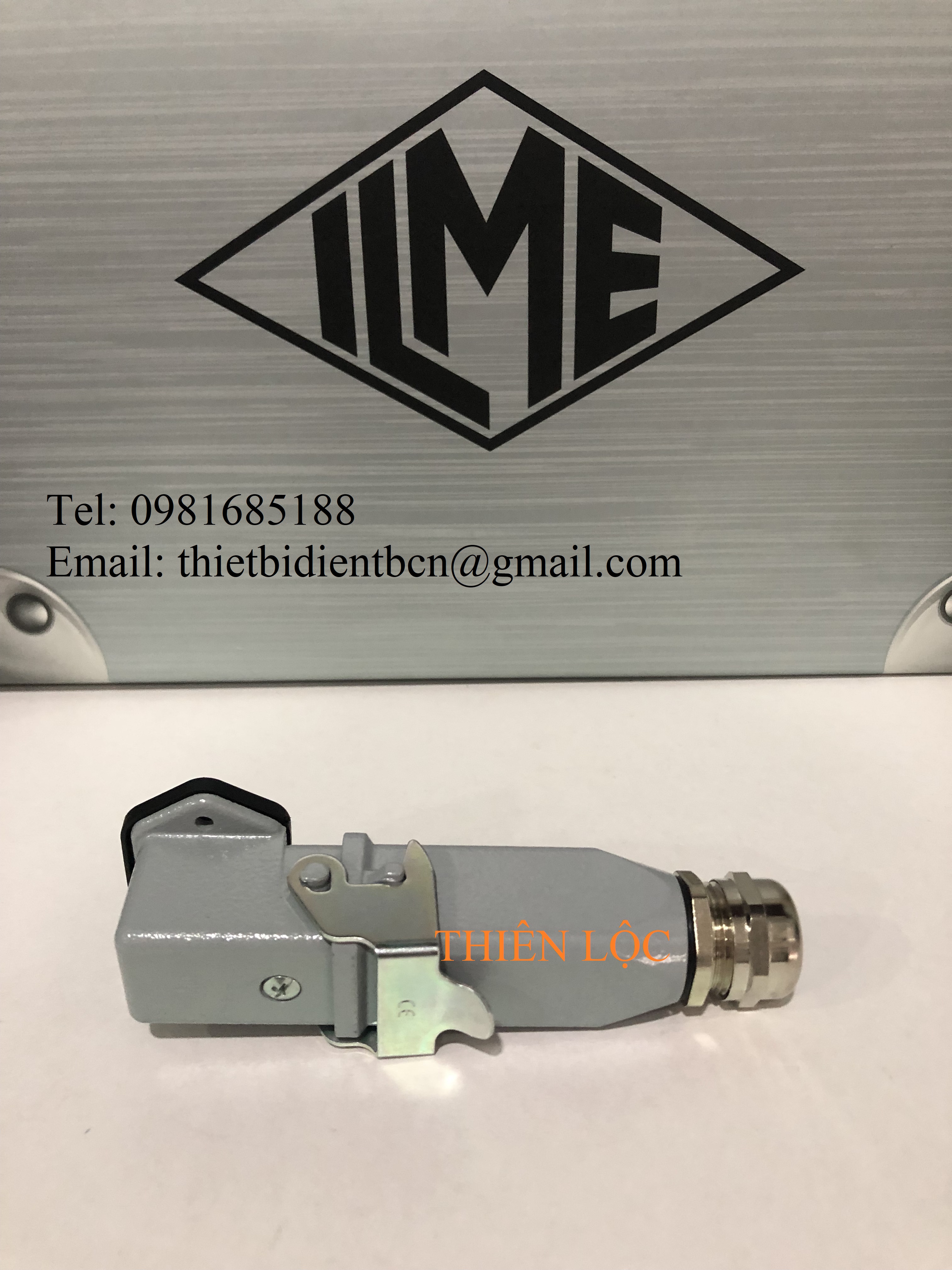

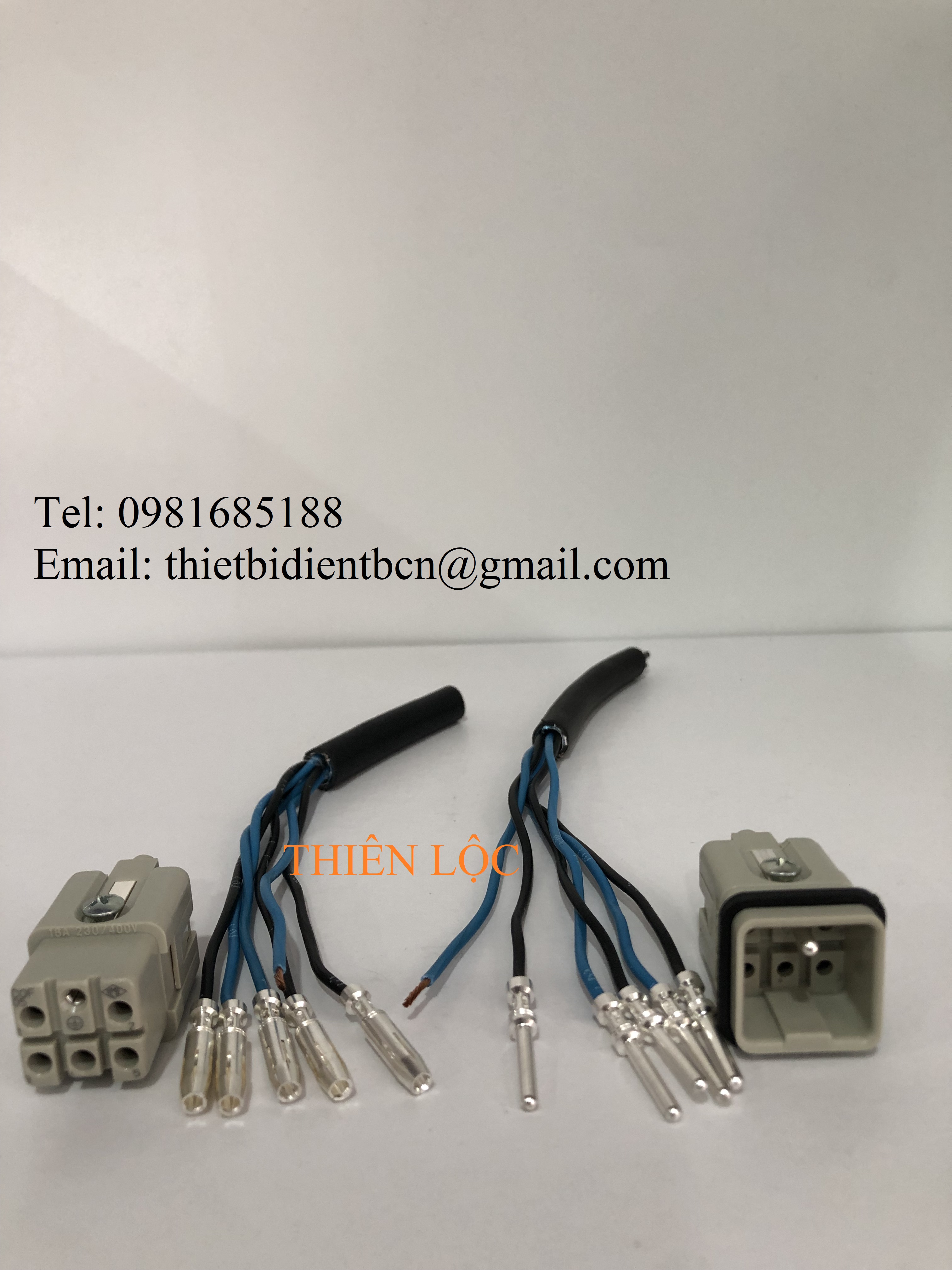

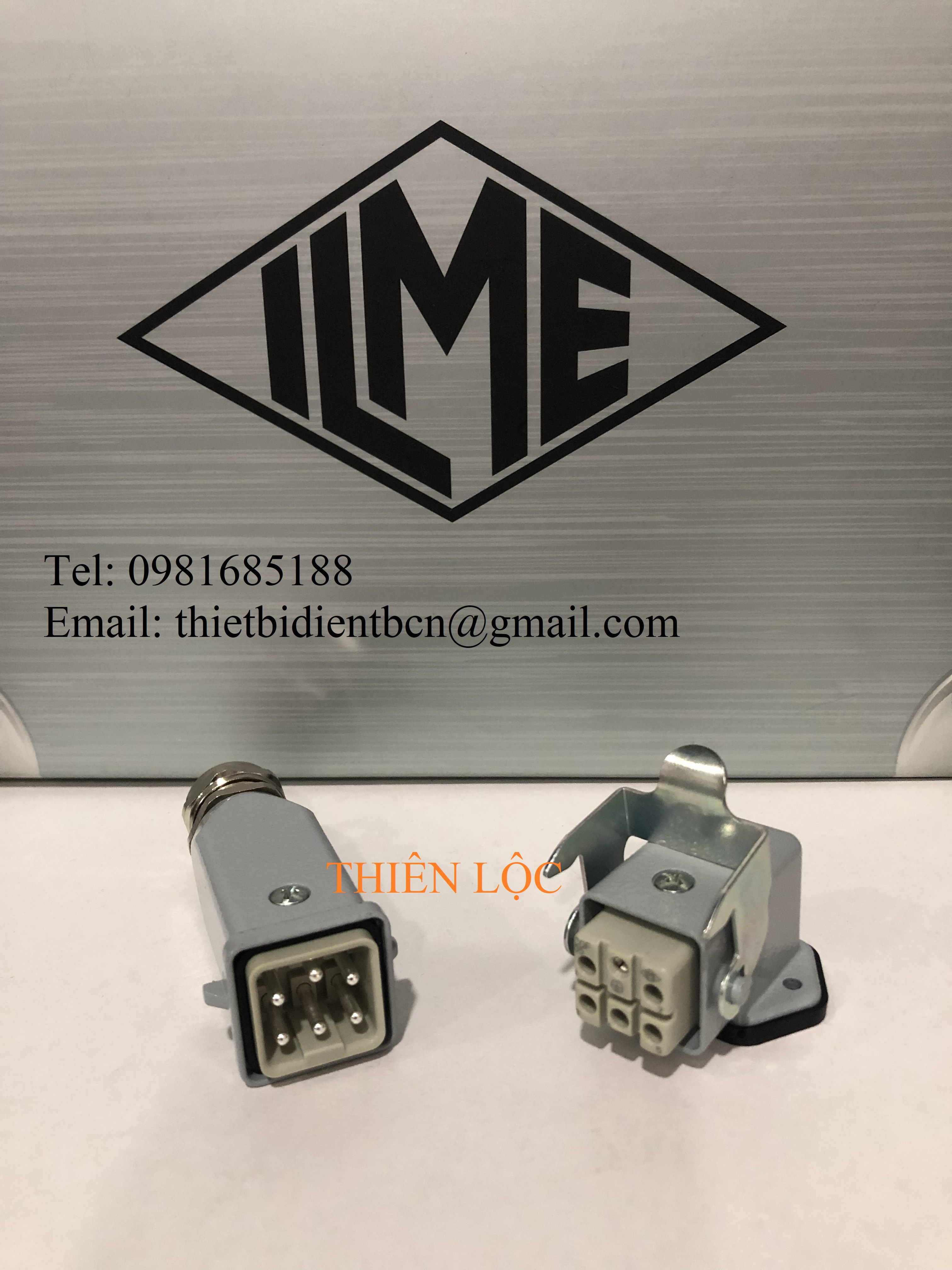

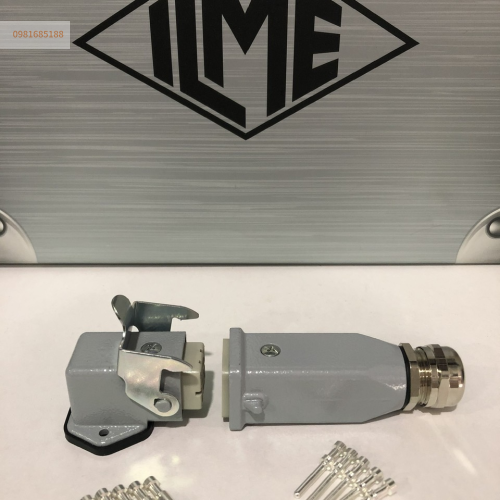

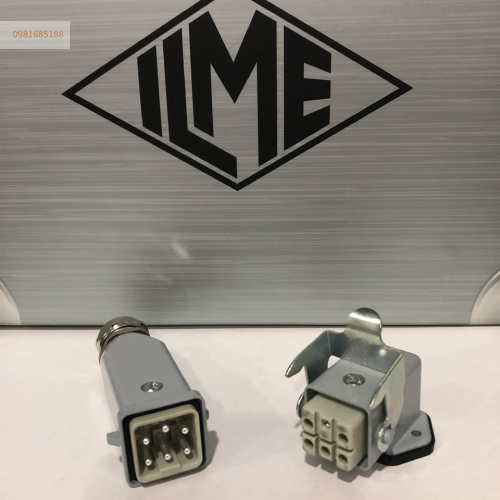

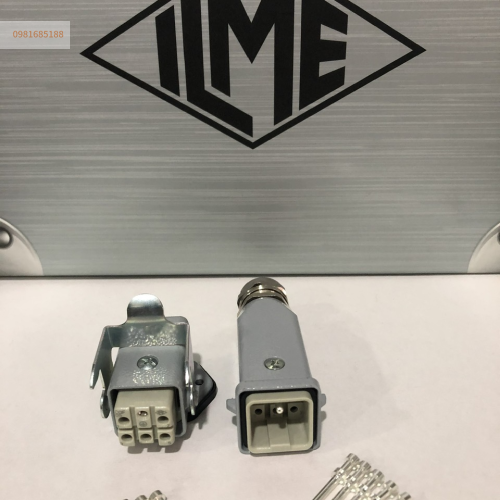

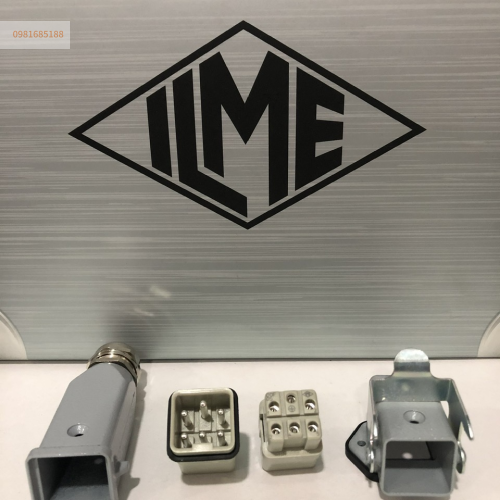

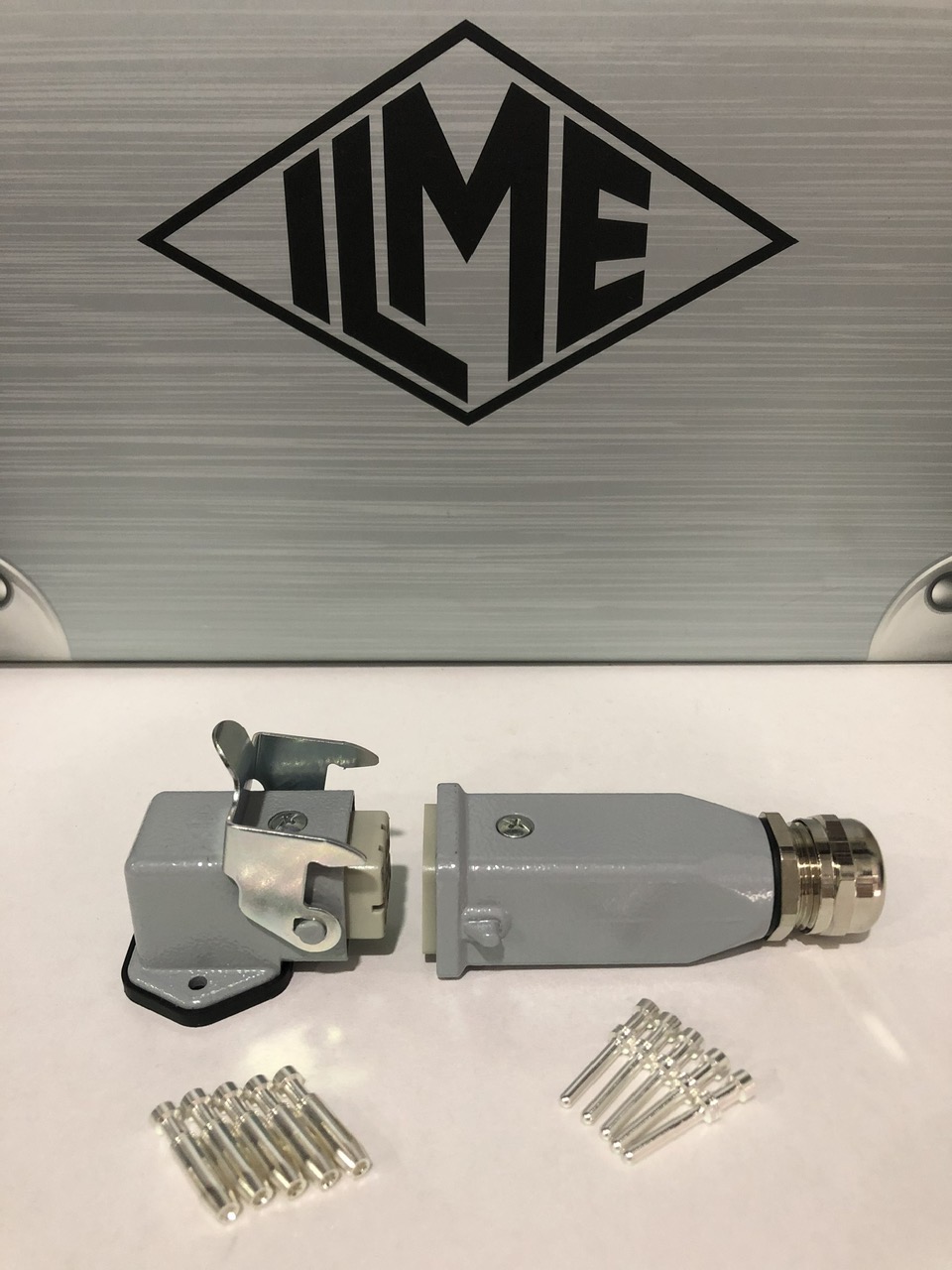

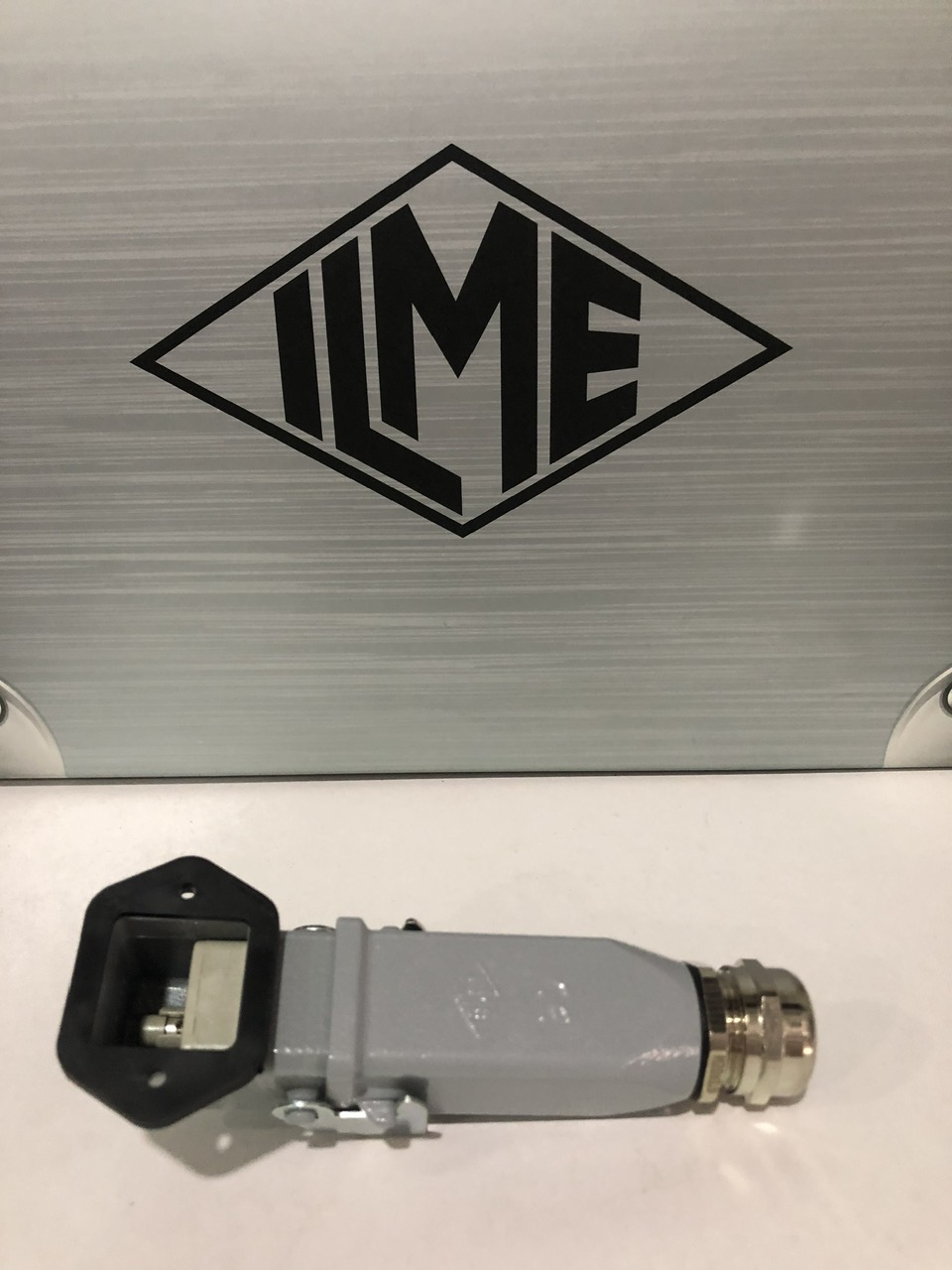

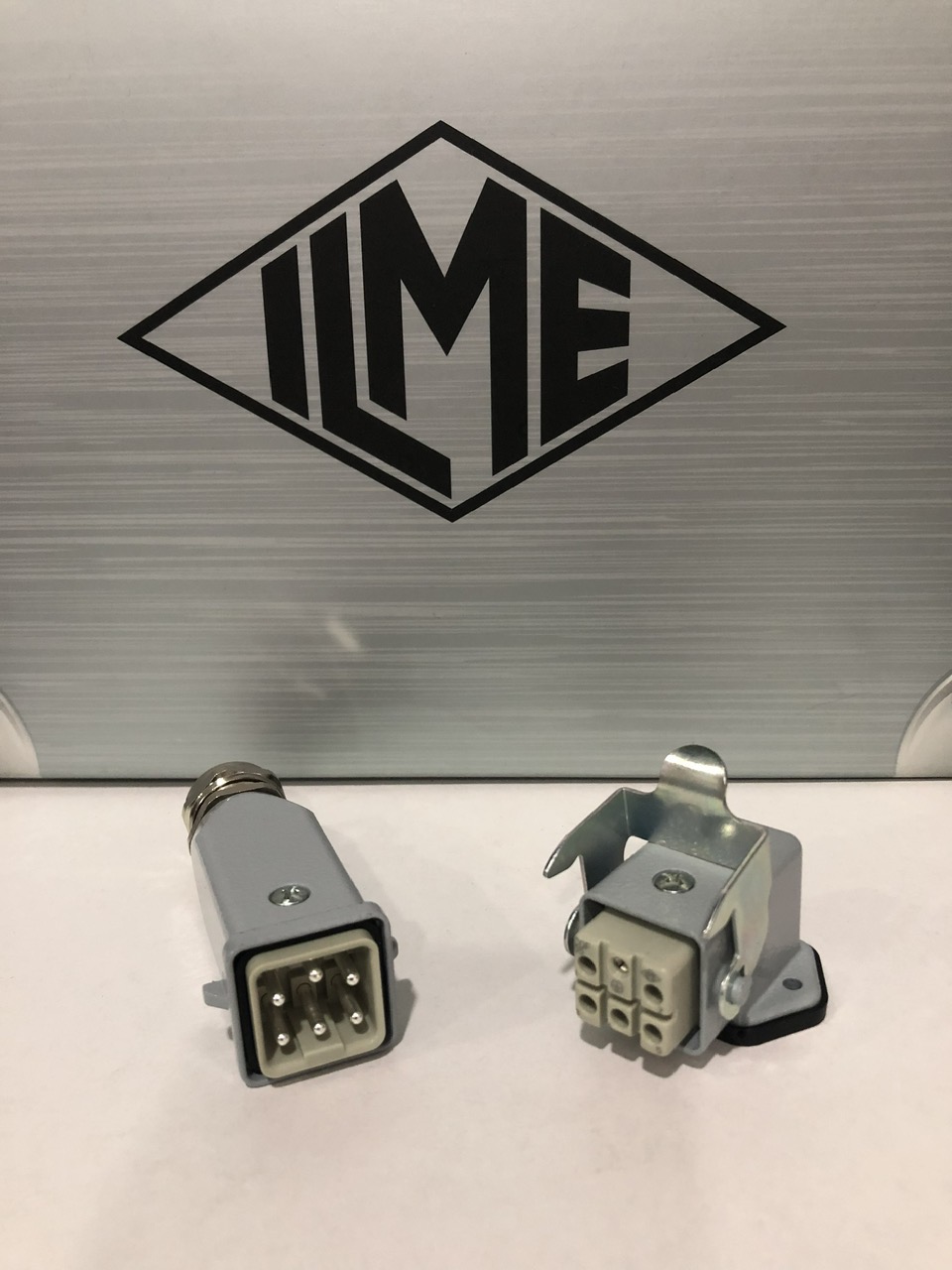

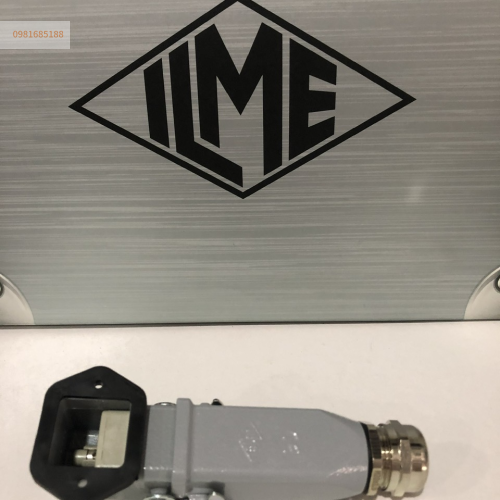

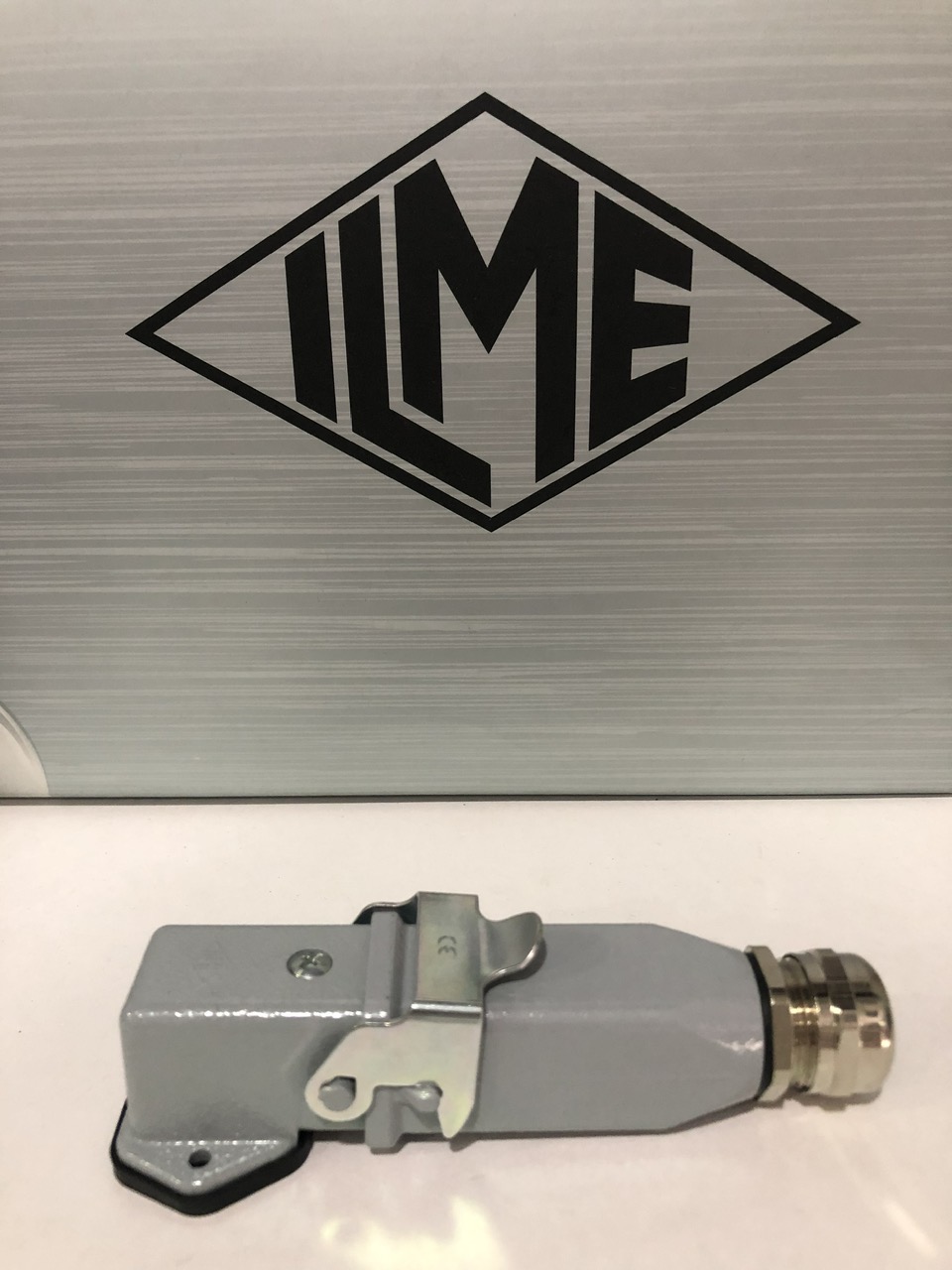

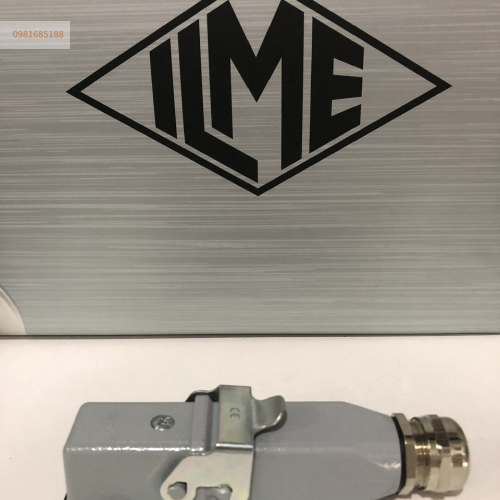

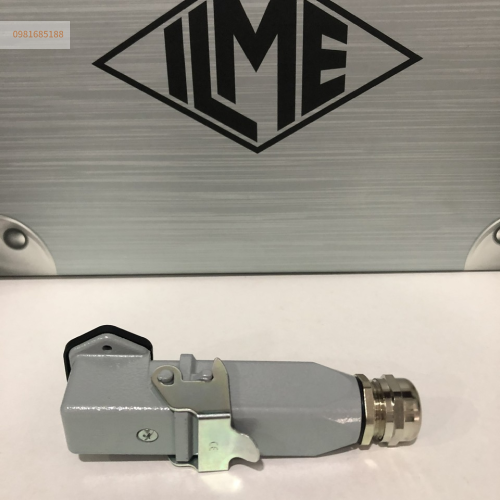

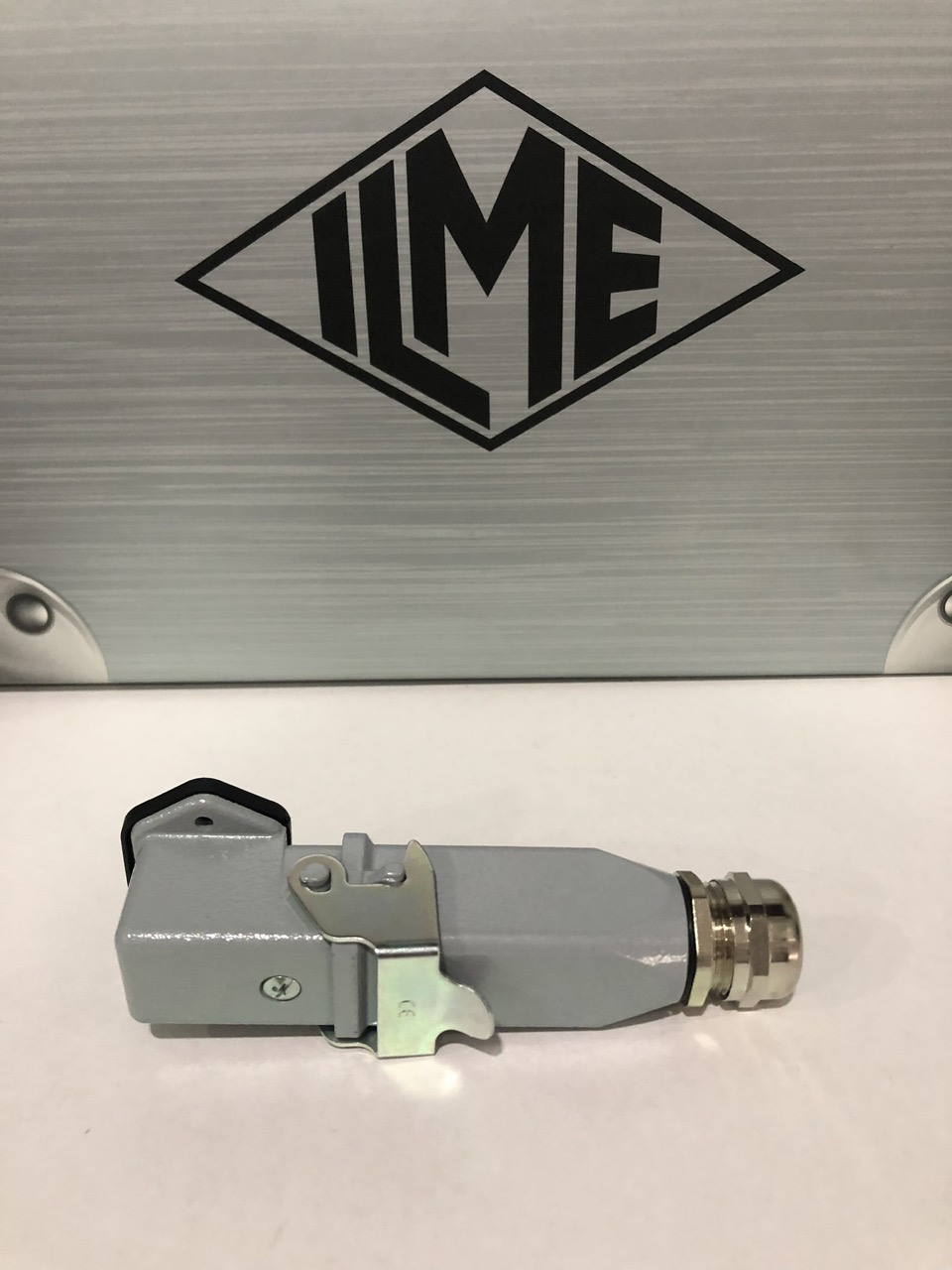

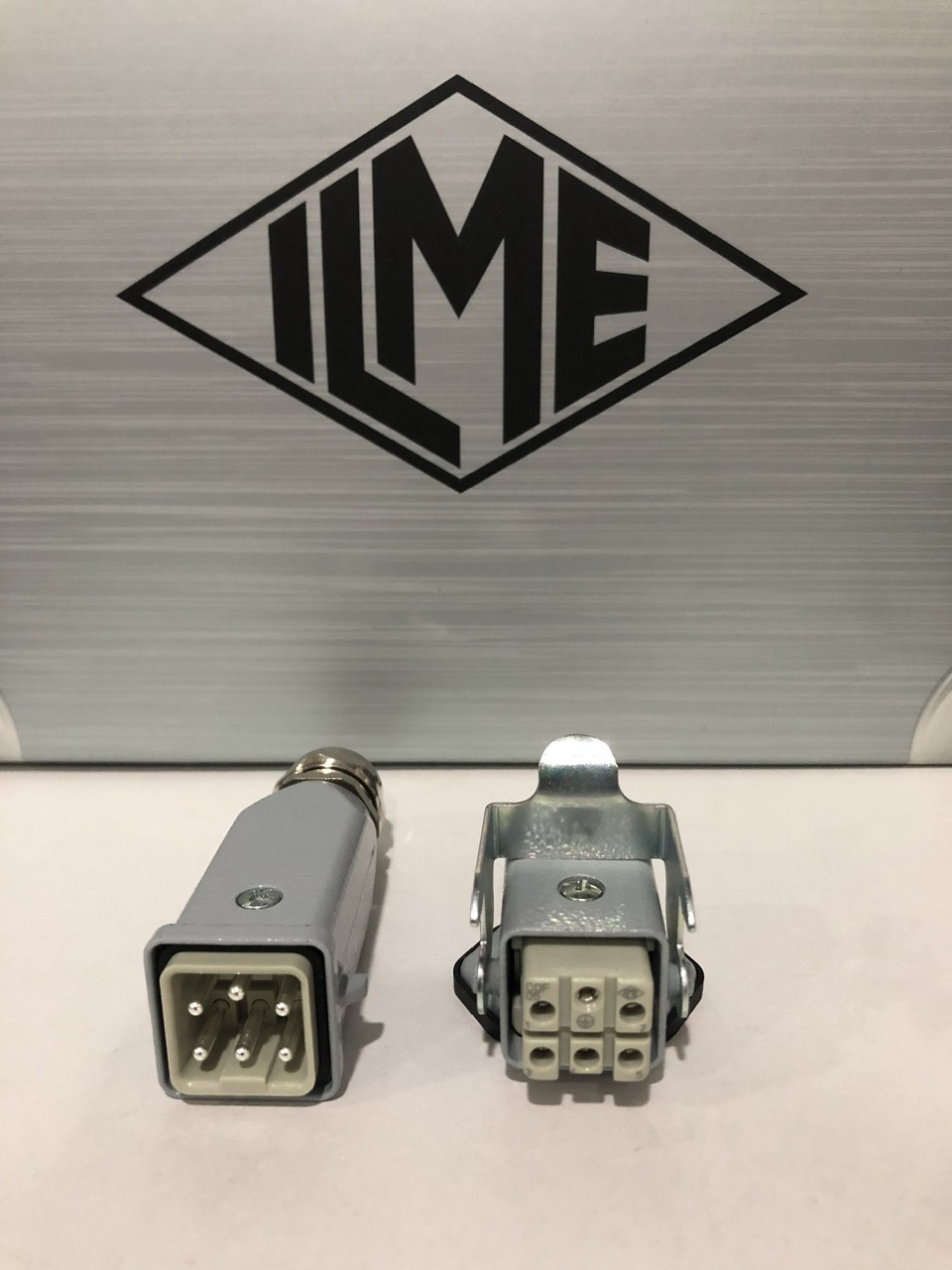

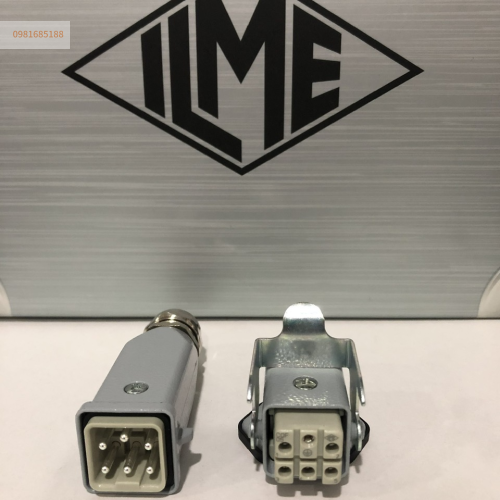

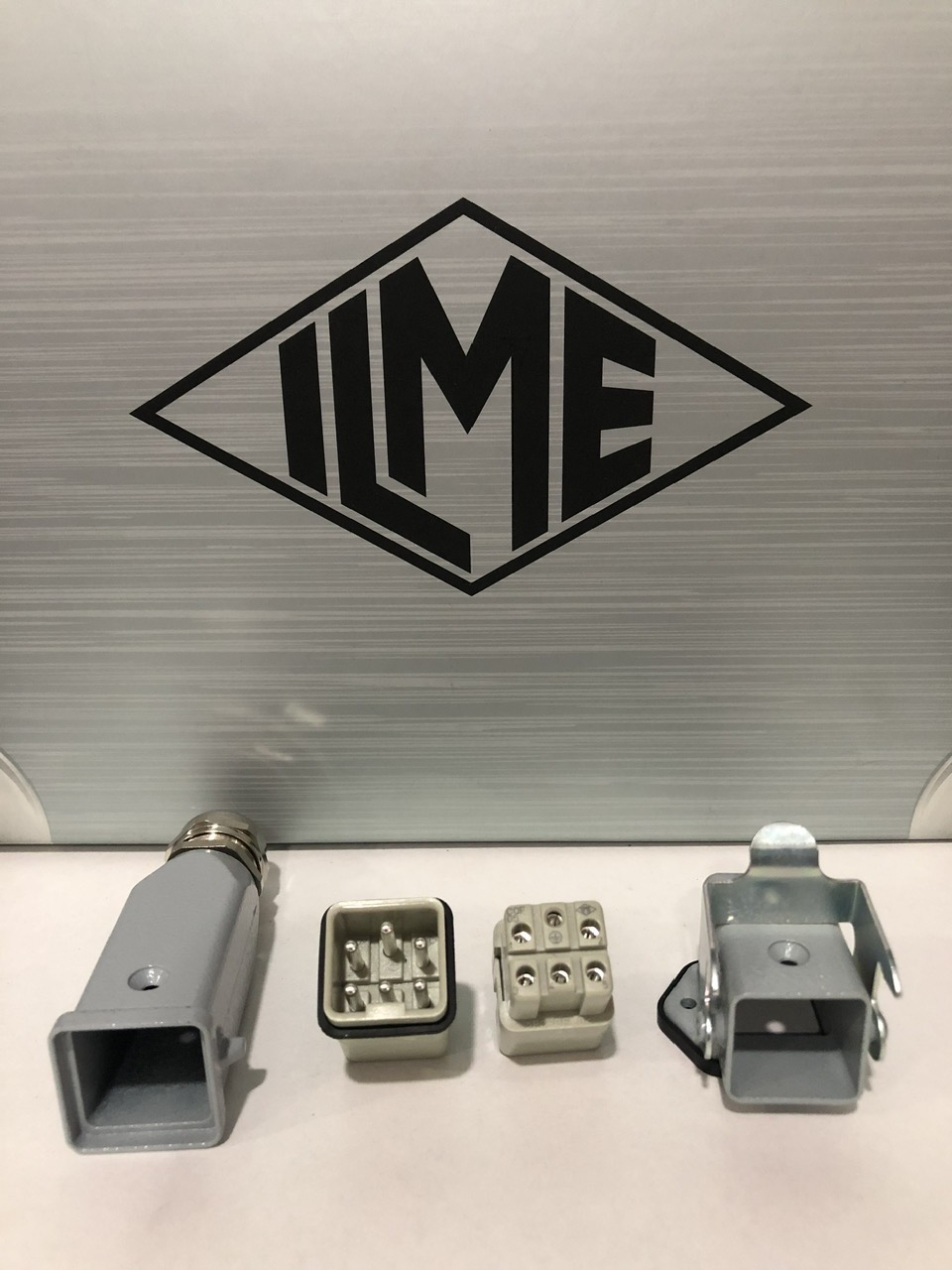

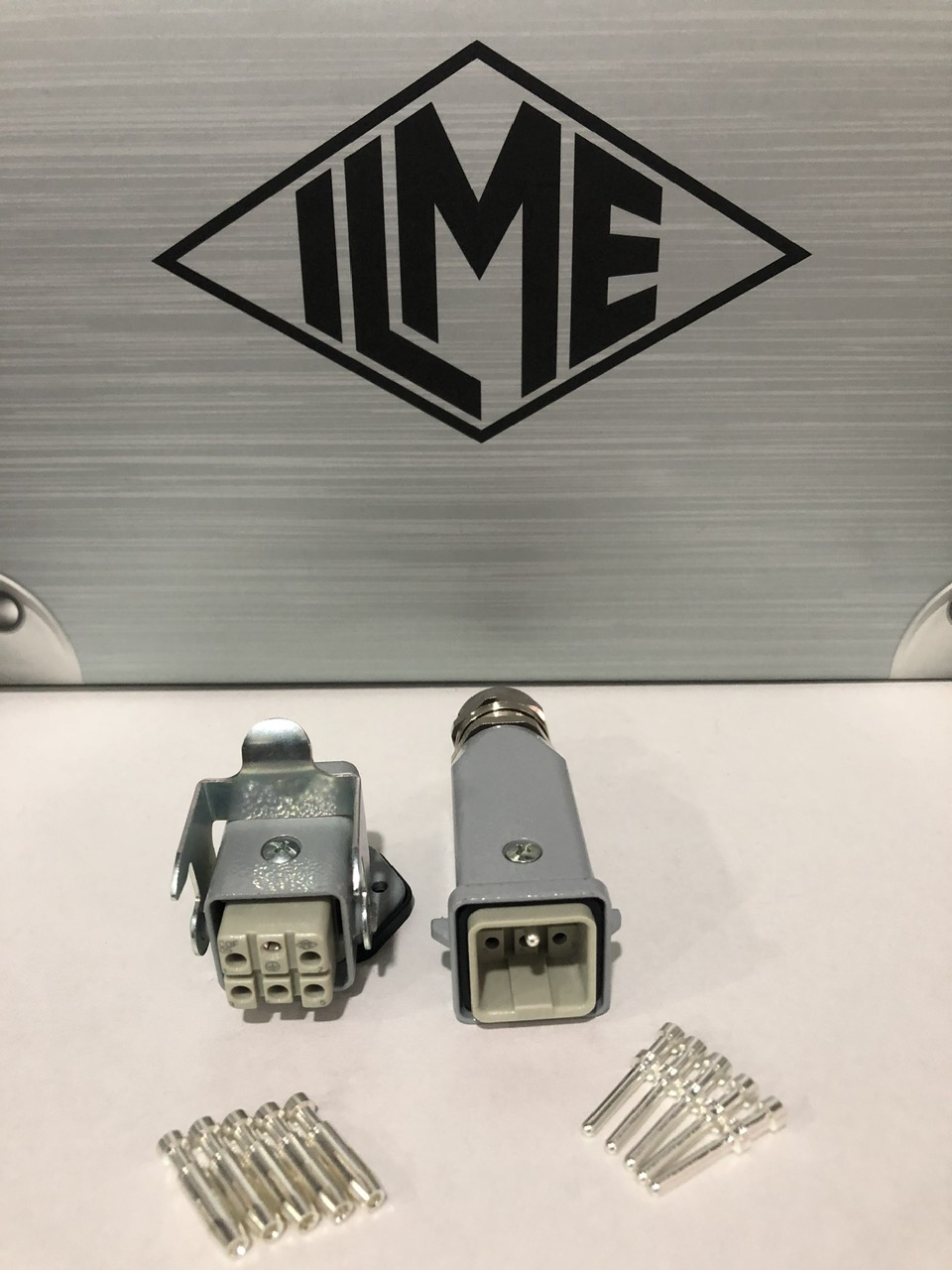

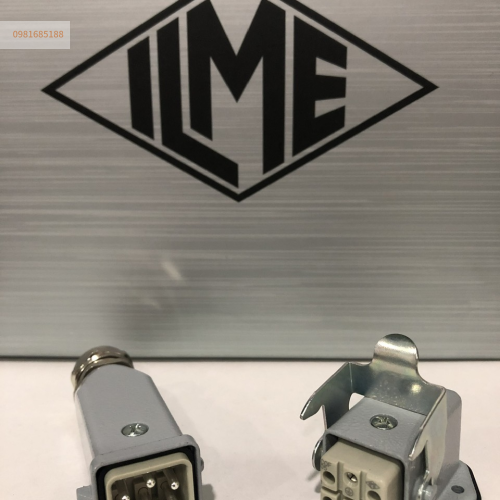

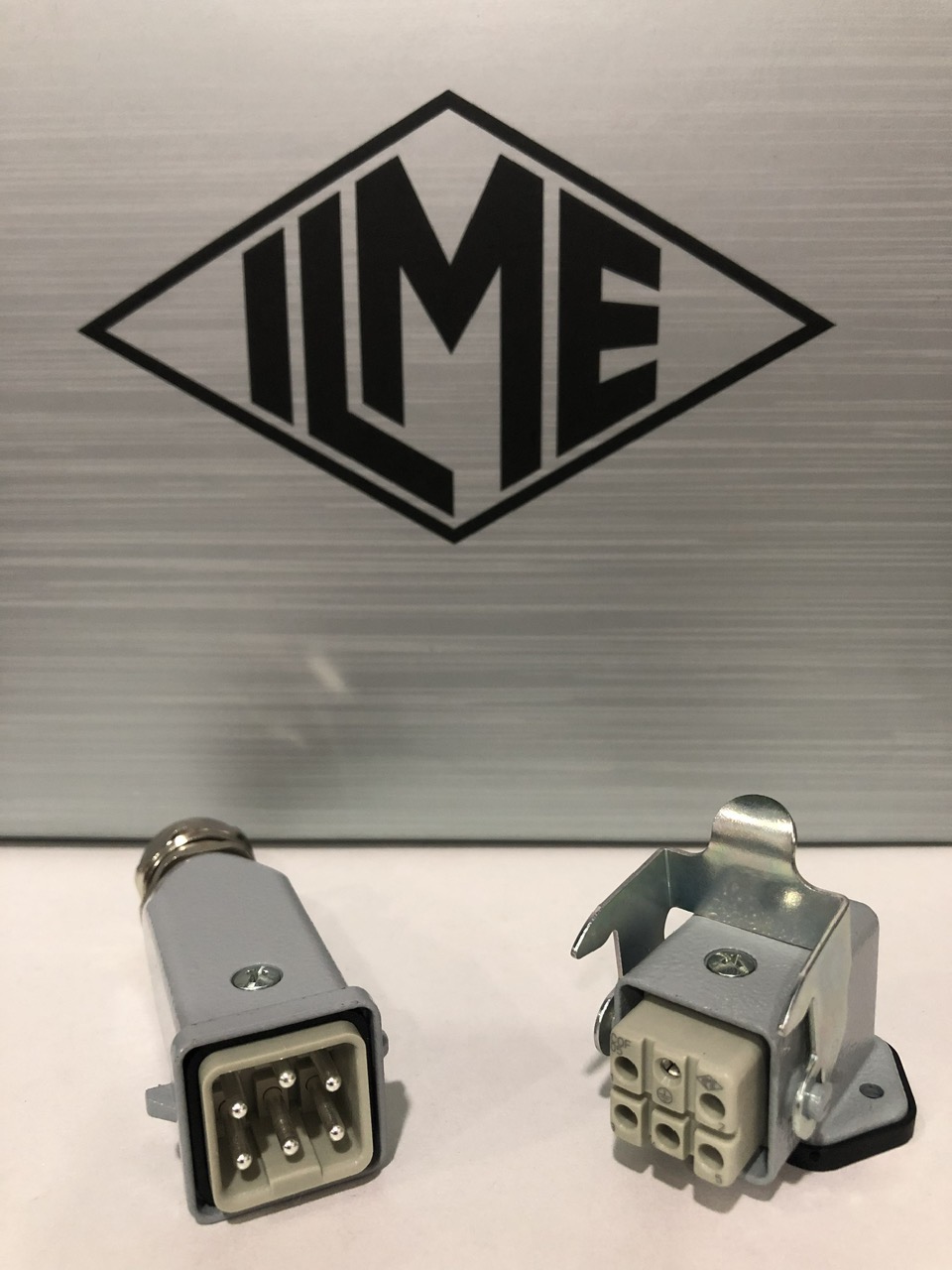

Giắc cắm 6 chân spindle CNC gió CKA 03 IA, MKA V20, CQF 05, CQM 05, CCFA 1.5, CCMA 1.5
Số chân giắc cắm: 6 chân
Dòng: 16A
Hãng sản xuất: ILME
Công dụng: kết nối điện
Giá:
Lượt xem:
| Product description | |
| Product type | Insert |
| Series | CQ |
| Connection type | Crimp connection |
| Gender | Female |
| N. of poles | 5 poles +  |
| Size | Size "21.21" |
| Technical data | |
| Current | 16 A |
| Voltage | 230 - 400 V |
| Rated impulse withstand voltage | 4 kV |
| Pollution degree | 3 |
| Rated voltage according to UL/CSA | 600 V |
| IP degree of protection | IP20 without enclosure, IP44/IP66/IP67/IP68/IP69 with enclosure |
| Further technical details | |
| Characteristics according to EN 61984 | 16A 230/400V 4kV 3; 16A 320/500V 4kV 2 |
| Mating cycles | ≥ 500 |
| Insulation resistance | ≥ 10 GΩ |
| Contact resistance | ≤ 1 mΩ |
| Weight | 14,00 g |
| Operating temperature range (min, max) | -40 °C ... +125 °C |
| UL 94 flammability rating | V-0 |
| Tightening torque for PE connection | M3: 0,5 Nm; 4,4 lb.in (0,5 x 3 mm) |
| Tightening torque for fixing screws | M3: 0,5 Nm; 4,4 lb.in (Ph1 or 0,8 x 5,5 mm) |
| Product description | |
| Product type | Insert |
| Series | CQ |
| Connection type | Crimp connection |
| Gender | Male |
| N. of poles | 5 poles + |
| Size | Size "21.21" |
| Technical data | |
| Current | 16 A |
| Voltage | 230 - 400 V |
| Rated impulse withstand voltage | 4 kV |
| Pollution degree | 3 |
| Rated voltage according to UL/CSA | 600 V |
| IP degree of protection | IP20 without enclosure, IP44/IP66/IP67/IP68/IP69 with enclosure |
| Further technical details | |
| Characteristics according to EN 61984 | 16A 230/400V 4kV 3; 16A 320/500V 4kV 2 |
| Mating cycles | ≥ 500 |
| Insulation resistance | ≥ 10 GΩ |
| Contact resistance | ≤ 1 mΩ |
| Weight | 12,70 g |
| Operating temperature range (min, max) | -40 °C ... +125 °C |
| UL 94 flammability rating | V-0 |
| Tightening torque for PE connection | M3: 0,5 Nm; 4,4 lb.in (0,5 x 3 mm) |
| Tightening torque for fixing screws | M3: 0,5 Nm; 4,4 lb.in (Ph1 or 0,8 x 5,5 mm) |
| Product description | |
| Product type | Angled bulkhead mounting housing |
| Series | CKA |
| Closing type | With 1 lever |
| Size | Size "21.21" |
| Cable entry | Without cable entry |
| Technical data | |
| IP degree of protection | IP44 (IP66/IP67/IP69 with CKR 65/CKR 65 D kits) |
| Further technical details | |
| Weight | 45,00 g |
| Operating temperature range (min, max) | -40°C...+125°C |
| Material properties | |
| Main material | Zinc die-cast |
| Colour | RAL 7040 grey |
| RoHs conformity | Compliant |
| China RoHs - EFUP | E |
| REACH SVHC substances | No |
| Product description | |
| Product type | Hood |
| Series | CKA |
| Closing type | With 2 pegs |
| Size | Size "21.21" |
| Cable entry | Top cable entry M20 |
| Technical data | |
| IP degree of protection | IP44 (IP66/IP67/IP69 with CKR 65/CKR 65 D kits) |
| Further technical details | |
| Weight | 60,50 g |
| Operating temperature range (min, max) | -40°C...+125°C |
| Material properties | |
| Main material | Zinc die-cast |
| Colour | RAL 7040 grey |
| RoHs conformity | Compliant |
| China RoHs - EFUP | E |
| REACH SVHC substances | No |
