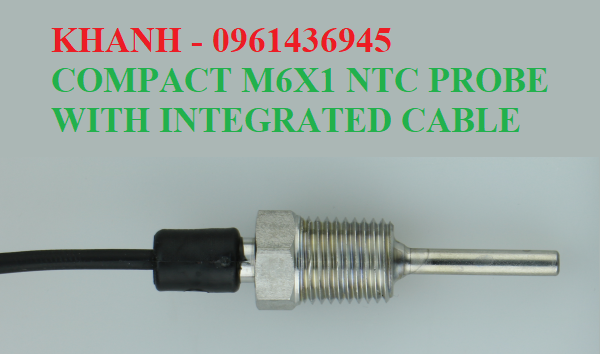

COMPACT M6X1 NTC PROBE WITH INTEGRATED CABLE | COMPACT M6X1 NTC PROBE WITH INTEGRATED CABLE
COMPACT M6X1 NTC PROBE WITH INTEGRATED CABLE | COMPACT M6X1 NTC PROBE WITH INTEGRATED CABLE

COMPACT M6X1 NTC PROBE WITH INTEGRATED CABLE | COMPACT M6X1 NTC PROBE WITH INTEGRATED CABLE

  • Mã sản phẩm:

    COMPACT M6X1 NTC PROBE WITH INTEGRATED CABLE

    • Compact KTY 980 ÷ 1000 ohm probe with integrated cable

    – KTY 980 ÷ 1000 ohm ntc probe
    -tube thermowell Ø 4 mm STAINLESS STEEL 1/4 NPT-M threaded
    – PP/TPE cable

  • Giá:

    Liên hệ

  • Lượt xem:

    2125

TECHNICAL DATA



Product type

probe

Type of sensor

thermoresistance

Sensor construction type

with insulator

Sensor protection

metal sheath

Removable insert

no

Sensing element

KTY R(25°C)=980÷1000 Ohm

Sensing Element configuration

single 2-wire

Output signal type

thermistor

Sensing part maximum working temperature

105°C

Sheet material

AISI 316L

Sheet diameter d=

Ø 4 mm

Immersion I=

25 mm

Insulation resistance
100 M ?@ 100 Vdc.
