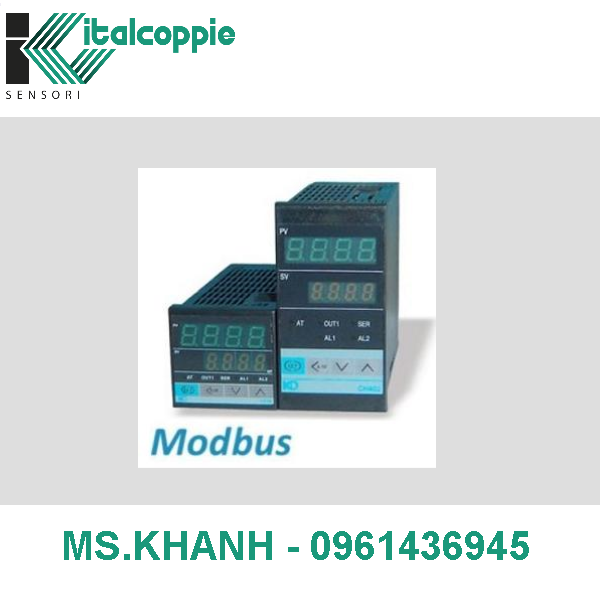

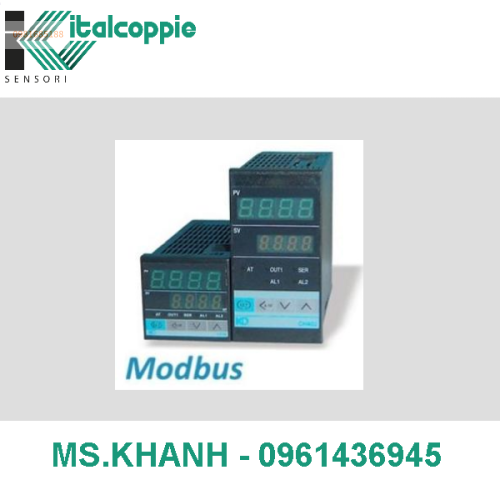

CH 102/ 104 DOUBLE DISPLAY PROCESS CONTROLLER
CH 102/ 104 DOUBLE DISPLAY PROCESS CONTROLLER

CH 102/ 104 DOUBLE DISPLAY PROCESS CONTROLLER

  • Mã sản phẩm:

    CH

    • For front panel

    Front panel process controller with PID algorithm, autotuning, universal input, relay or logic or continuous or servovalve output control, Modbus RTU serial interface, multifunction digital input

    TECHNICAL DATA



    Product type

    thermoregulator

    Nominal power supply

    power supply 100÷240 Vca

    power supply 21÷48 Vca/cc

    Power consumption

    7 W a 100 Vca

    10 W a 240 Vca

    4 W a 21 Vca / Vdc

    5 W a 48 Vca / Vdc

    Ambient operating conditions

    Temperature: 0 ÷ 50 °C

    Humidity: 45 ÷ 85% UR (without condensation)

    Input

    T/C tipo K

    T/C tipo J

    T/C type N

    T/C type T

    T/C type R

    T/C type S

    T/C type B

    T/C type E

    Pt100

    Pt1000

    0 ÷ 20 mA

    4 ÷ 20 mA

    0 ÷ 5 Volt

    1 ÷ 5 Volt

    0 ÷ 10 Volt

    2 ÷ 10 Volt

    Accuracy

    ingresso RTD: ±0,2% v.f.s

    ingresso lineare (mA/Volt): ±0,2% v.f.s

    ingresso Termocoppia: ±0,2°C (compensazione automatica del giunto freddo)

    *accuratezza della misura a 25°C

    Regulation output

    4 different types of output can be selected when ordering:

    SPDT relay (maximum load 5 A @ 250 Vca)

    logic (15 Vdc max. 35 mA)

    continuous output in Volts (0 / 2 ÷ 10 V) or in mA (0 / 4 ÷ 20mA) with selection by means of jumper on instrument's electronic board

    servovalve control by means of 2 SPST relays (maximum load 3 A @ 250 Vca)

    Power for two-wire transmitter
