Mã sản phẩm:
TECHNICAL DETAILS
| Product description | |

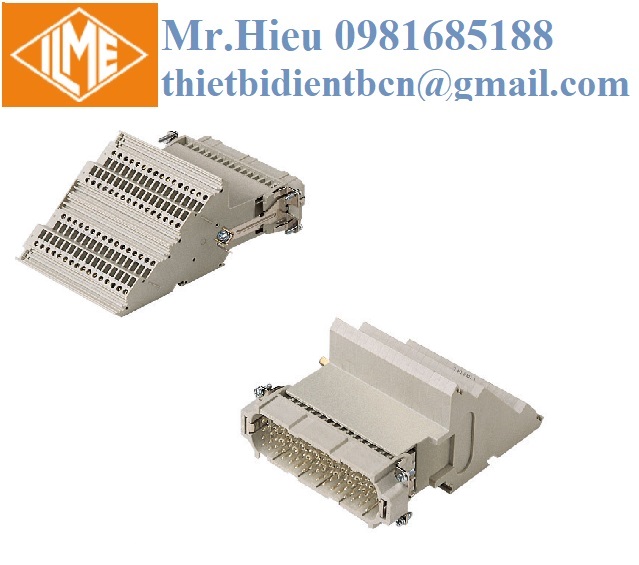

| Model | Female/Male insert |
| Version | With terminal block, screw terminal connection |
| Series | CT |
| Product type | With Female/Male contacts |
| Variant | Left side mounting |
| Family | CLASS inserts |
| Size | Size "104.27" only bulkhead mounted housing |
| N. of poles | 64 poles +  |
| Technical data | |
| Current | 10 A |
| Voltage | 250 V |
| Rated impulse withstand voltage | 4 kV |
| Pollution degree | 3 |
| Wire cross-section | 0,75 mm² - 2,50 mm² |
| AWG size | 18 - 14 |
| Operating temperature range (min, max) | -40 °C ... +125 °C |
| Contact material | Silver plated |
| Mating cycles | ≥ 500 |
| IP degree of protection | IP20 without enclosure, IP66/IP69 with enclosure |
| PE connection type | Screw |
| PE terminal stripping length | 7 mm |
| Tightening torque for PE connection | M4: 1,2 Nm, 10,6 lb,in (Ph2 or 1,0x5,5mm ) |
| Further technical details | |
| Characteristics according to EN 61984 | 10A 250V 4kV 3; 10A 230/400V 4kV 2 |
| Insulation resistance | ≥ 10 GΩ |
| Contact resistance | ≤ 4 mΩ |
| Rated voltage according to UL/CSA | 600 V |
| UL 94 flammability rating | V-0 |
| Conductors stripping length | 12 mm |
| Torque for main contact | M2,6: 0,4 Nm; 3,5 lb.in (0,5 x 3 mm) |
| Tightening torque for fixing screws | M3: 0.5 Nm; 4.4 lb.in (Ph1 or 0.8x4 mm) |
| Weight | 554,00 g |
| Approvals / Standards | |
| Reference standard | EN 61984:2009-06 |
| Quality mark |   DNV GL, BV, EAC |
| Conformity | CQC, CE |
