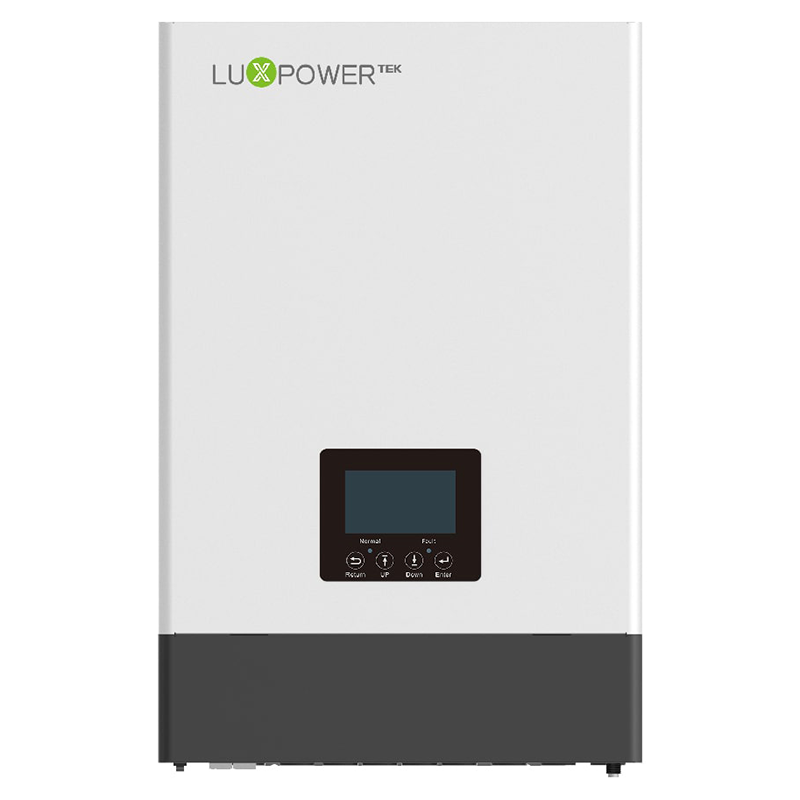

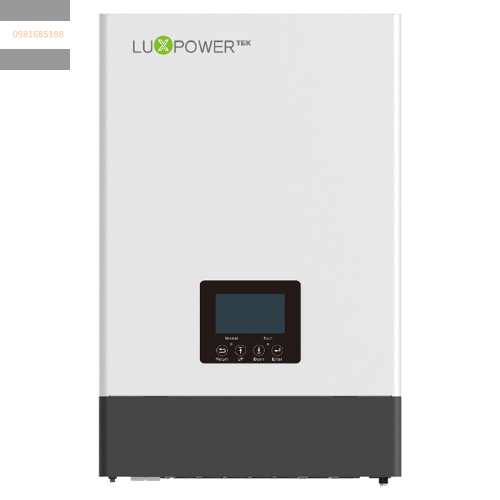

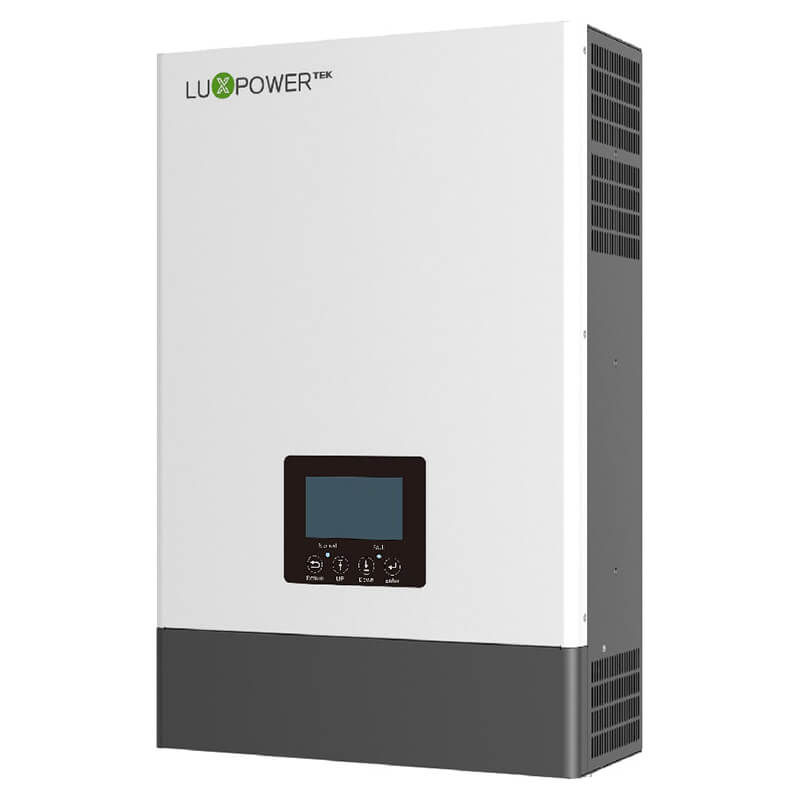

Biến tần lưu trữ SNA5000-WPV
Biến tần lưu trữ SNA5000-WPV
Biến tần lưu trữ SNA5000-WPV

Biến tần lưu trữ SNA5000-WPV

  • Mã sản phẩm:

    SNA5000-WPV
    • Output SNA5000
    Rated power 5000W/5000VA
    Parallel capacity YES
    Normal output voltage 230/240,Split phase 220/110 Vac *
    Normal output frequency 50/60Hz
    Surge power 10000VA
    Switch time 10ms
    Wave form Pure sine wave

  • Giá:

    Liên hệ

  • Lượt xem:

    60
Output SNA3000 SNA4000 SNA5000
Rated power 3000W/3000VA 4000W/4000VA 5000W/5000VA
Parallel capacity YES YES YES
Normal output voltage 230/240,Split phase 220/110 Vac * 230/240,Split phase 220/110 Vac * 230/240,Split phase 220/110 Vac *
Normal output frequency 50/60Hz 50/60Hz 50/60Hz
Surge power 6000VA 8000VA 10000VA
Switch time 10ms 10ms 10ms
Wave form Pure sine wave Pure sine wave Pure sine wave

Solar SNA3000 SNA4000 SNA5000
Max. Recommended PV Power 3200W/3200W 3200W/3200W 3200W/3200W
MPPT Tracker 2 2 2
DC Input Voltage range 100-480Vdc 100-480Vdc 100-480Vdc
MPPT Voltage Range 100-385Vdc 100-385Vdc 100-385Vdc
Start-up Voltage 120Vdc 120Vdc 120Vdc
Max. Solar Charge Current 110A 110A 110A
Max. Solar Input Current 13A/13A 13A/13A 13A/13A
Max. MPPT Eiciency >98% >98% >98%

Grid SNA3000 SNA4000 SNA5000
Normal Voltage 230Vac 230Vac 230Vac
AC Voltage Range 110-280Vac 110-280Vac 110-280Vac
Max. Charge Current 60A 60A 60A
Frequency Range 50/60Hz(Auto Sensing) 50/60Hz(Auto Sensing) 50/60Hz(Auto Sensing)

General SNA3000 SNA4000 SNA5000
Dimensions(W/H/D) 330x504x135mm 330x504x135mm 330x504x135mm
Weight 14Kg 14Kg 14Kg
Protection Degree IP20 IP20 IP20
Relative Humidity 5%~95% Relative Humidity(Non-condensing) 5%~95% Relative Humidity(Non-condensing) 5%~95% Relative Humidity(Non-condensing)
Operating Temperature 0°C~50°C 0°C~50°C 0°C~50°C
Storage Temperature -15°C~60°C -15°C~60°C -15°C~60°C

Interfaces SNA3000 SNA4000 SNA5000
Display LCD+LED LCD+LED LCD+LED
Lithium Battery Communication CAN/RS485 CAN/RS485 CAN/RS485
RS485/Dry Connector YES/YES YES/YES YES/YES
Wifi/GPRS YES/YES YES/YES YES/YES
Warranty 2 year 2 year 2 year
